Single Stage Flyback And PFC Controller With Primary Side Control For LED Lighting
![]()
- Parameters
- Features
- Description
| Part number | SY22602FAC |
|---|
| Description | PSR, QR, CC, Flyback PFC controller |
|---|
| Topology | Flyback |
|---|
| Dimming mode | Non-dimming |
|---|
| PF (>) | 0.9 |
|---|
| Input type | 120VAC, 230VAC |
|---|
| Iout (max) (A) | |
|---|
| Pout (max) (W) | 100 |
|---|
| Package | SOT23-6 |
|---|
| Application | Flyback, non dimming, PFC |
|---|
- Primary Side Control Eliminates the Opto-coupler.
- Valley Turn-on of the Primary MOSFET to Achieve Low Switching Loss
- Power Factor >0.90 with Single-stage Conversion
- Reliable Short LED and Open LED Protection
- Quick Start up <500ms
- Low Start up Current:15µA Typical
- RoHS Compliant and Halogen Free
- Package: SOT23-6

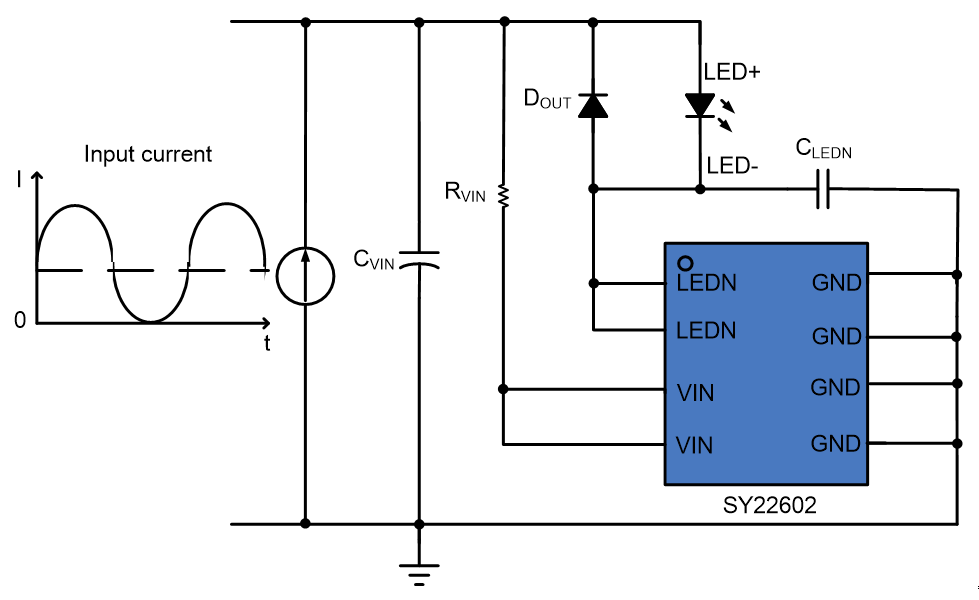

The SY22679B is a single stage Flyback and PFC controller targeting at LED lighting applications. It is a primary side controller without applying any secondary feedback circuit for low cost, and drives the Flyback converter in the quasi-resonant mode to achieve higher efficiency. It keeps the Flyback converter in constant on time operation to achieve high power factor. It adopts special design to achieve quick start up and reliable protection for safety requirement.
Evaluation Board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
The EVB_SY22679BABC is intended for evaluating AC 85~264V input, 20~40V output Single Stage Flyback And PFC Controller With Primary Side Control For LED Lighting
