SY2A58156VAQ (SA52116VAQ)

Production
Six Half-Bridge Driver with SPI Control
Datasheet
SY2A58156VAQ Six Half-Bridge Driver with SPI Control Datasheet
    Part numberSY2A58156VAQ
    Vin (max) (V)25
    Vin (min) (V)5.5
    Number of half bridges6
    RDS(on) (HS + LS) (mΩ)1500
    Peak output current (A)1.2
    Sleep current (µA)6
    Integrated FETs(Yes/No)Yes
    Control interfaceSPI
    FeaturesLow power sleep mode, Support paralleled output mode, Support daisy chain functionality, OVP, OCP, SCP, OLD, Undervoltage lockout
    Operating temperature range(°C)-40 to 125
    PackageQFN5×5-24
    Functional safety category
    • Six Half-Bridge Drivers
    • 0.55A Output Current per Channel@13.5V
    • Low Power Mode
    • Compatible with 5V/3.3V System
    • Serial Peripheral Interface, up to 5MHz
    • Fault Reporting
    • PWM Capable Outputs for Frequency 80Hz,
    • 100Hz and 200Hz with 8-Bit Duty Cycle Resolution
    • Internal Over Current Protection, Short Circuit
    • Protection, Under Load Detection, Under Voltage Lockout, Over Voltage Lockout and Thermal Shutdown
    • AEC-Q100 Qualified
    • QFN5×5-24 Package

    The SA52116 is a six half-bridge motor driver solution for automotive, industrial and other mechatronic applications. All the functions can be programmed through a serial data interface.

    The SA52116 provides internal shutdown functions, such as over current protection, under load detection, short circuit protection, under voltage lockout, over voltage lockout and thermal shutdown. A low-power sleep mode is also provided. The device is packaged in QFN5×5-24 with exposed-paddle.

    Evaluation Board

    • a

      Photo of evaluation board

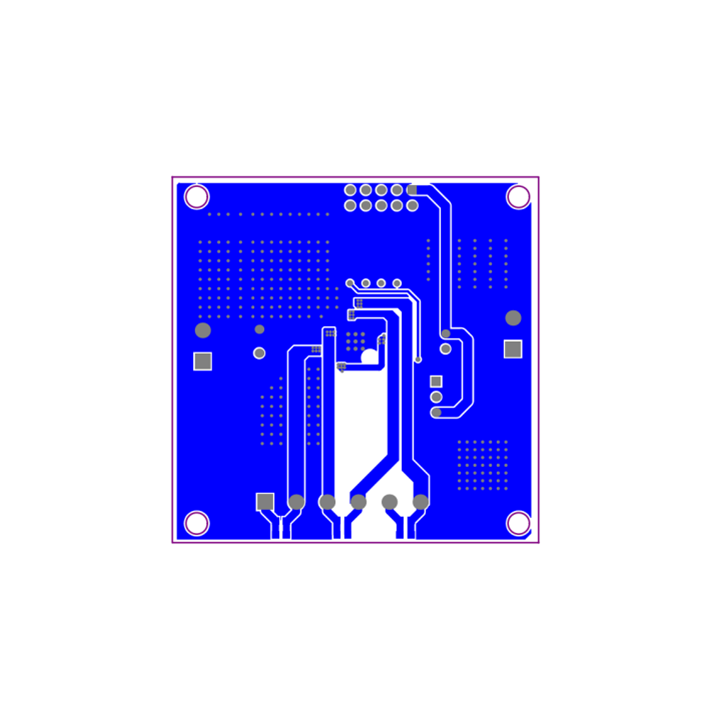

    • b

      Photo of evaluation board

    EVB_SY2A58156VAQ

    The EVB_SY2A58156VAQ is intended for evaluating Six Half-Bridge Driver with SPI Control SY2A58156VAQ.
