| Part number | SA21345BFCA |
|---|---|
| Vin (max) (V) | 36 |
| Vin (min) (V) | 4 |
| Iout (max) (A) | 0.3 |
| Output type | Adjustable |
| Vout (max) (V) | 36 |
| Vout (min) (V) | 0.6 |
| Iq (typ) (uA) | 7 |
| PSRR at 100kHz (dB) | 35 |
| Accuracy (±%) | 2 |
| Features | Enable,Fixed soft-start,Auto-discharge,Low Iq,Over current protection,Thermal shutdown |
| Operating temperature range(°C) | -40 to 125 |
| Package | SO8E |
| Functional safety category |
The SA21345B is an efficient, precise LDO designed for high input voltage and ultra low quiescent current applications.
The SA21345B provides adjustable output voltage and very low drop out (300mV at 300mA). Other features include the operation stability with low ESR ceramic or tantalum capacitors due to the optimized internal compensation, over current protection, and thermal shutdown.
The SA21345B is available in SO8E package.

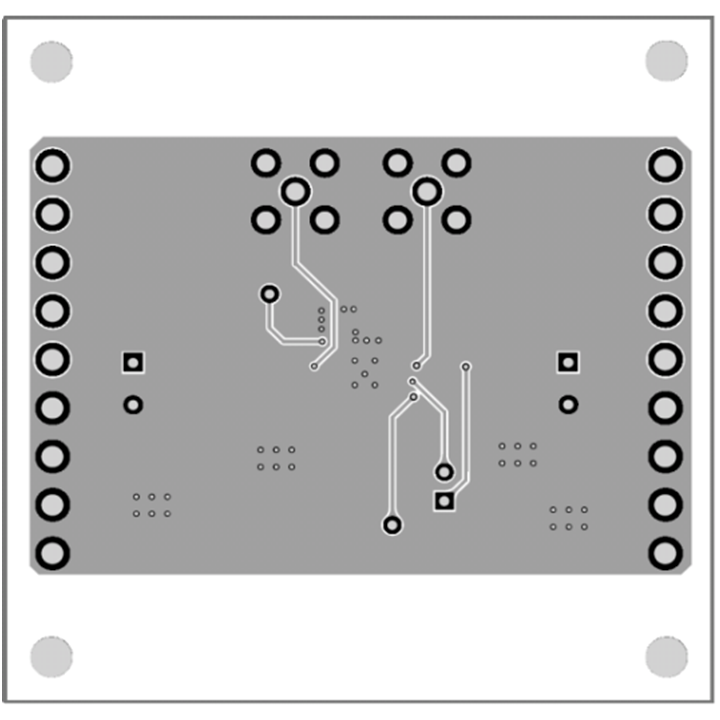

Photo of evaluation board

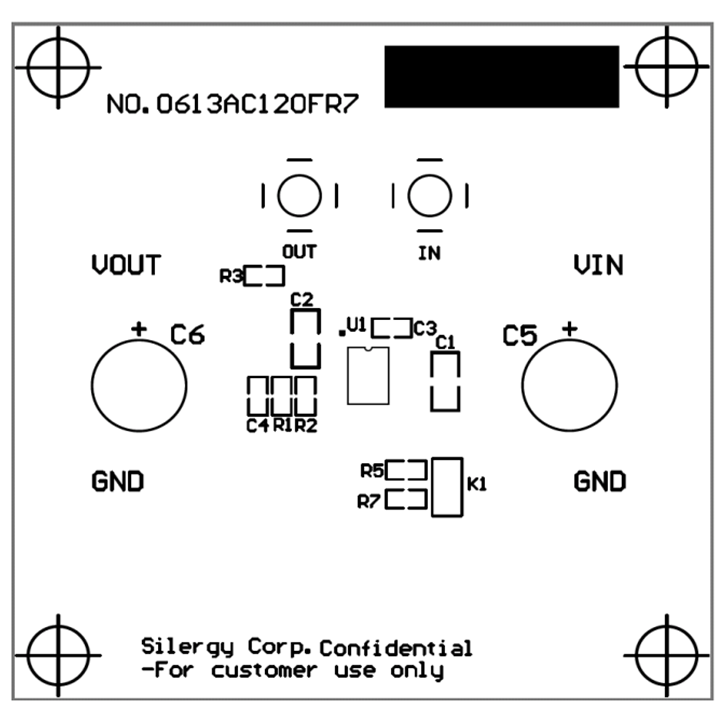

Photo of evaluation board

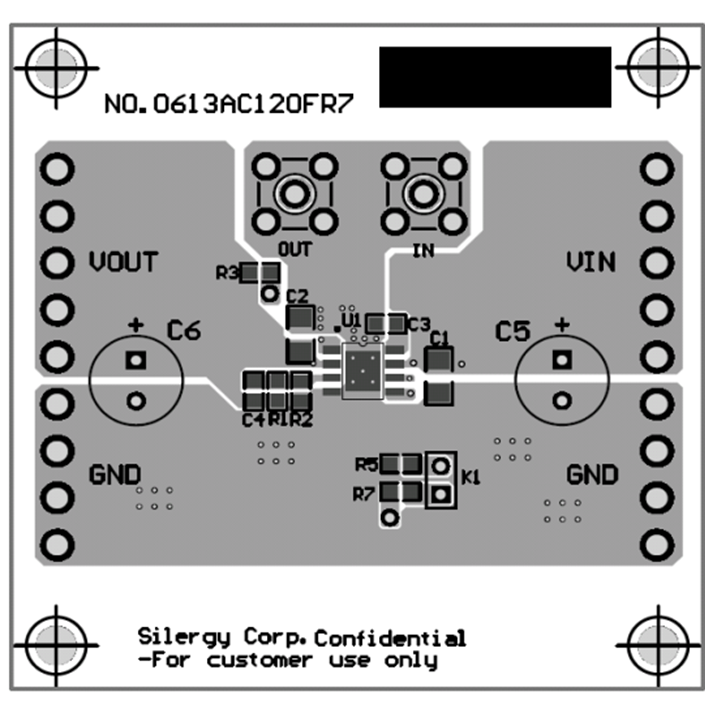

Photo of evaluation board
The EVB_SA21345BFCA is intended for evaluating 4V to 36V input, 300mA LDO SA21345BFCA.
