SA21345CDFD

Production
36V, 300mA LDO
Datasheet
SA21345CDFD 36V, 300mA LDO Datasheet
    Part numberSA21345CDFD
    Vin (max) (V)36
    Vin (min) (V)4
    Iout (max) (A)0.3
    Output typeAdjustable
    Vout (max) (V)36
    Vout (min) (V)0.6
    Iq (typ) (uA)10
    PSRR at 100kHz (dB)30
    Accuracy (±%)2
    FeaturesEnable,Fixed soft-start,Auto-discharge,Low Iq,Over current protection,Thermal shutdown
    Operating temperature range(°C)-40 to 125
    PackageDFN2×2-8
    Functional safety category
    • Wide Input Voltage Range: 4V to 36V
    • 300mA Maximum Load Current
    • Low Dropout Voltage of (300mV @ 300mA)
    • Low Quiescent Current (10µA typ.)
    • Low Shutdown Current (6µA max.)
    • Stability with Tantalum or Ceramic Capacitors
    • Excellent Load and Line Regulation
    • Enable Control Input
    • Over Current Protection
    • Thermal Shutdown
    • Package: DFN2×2-8
    • Automotive AEC- Q100 Grade 1 Qualified

    The SA21345CDFD is an automotive grade, efficient, precise low-dropout voltage regulator designed for high input voltage and ultra-low quiescent current applications.

    The SA21345CDFD provides adjustable output voltage and very low drop out (300mV at 300mA). It offers protection features including over-current protection, thermal shutdown, and stable operation with low ESR ceramic or tantalum capacitors due to the optimized internal compensation.

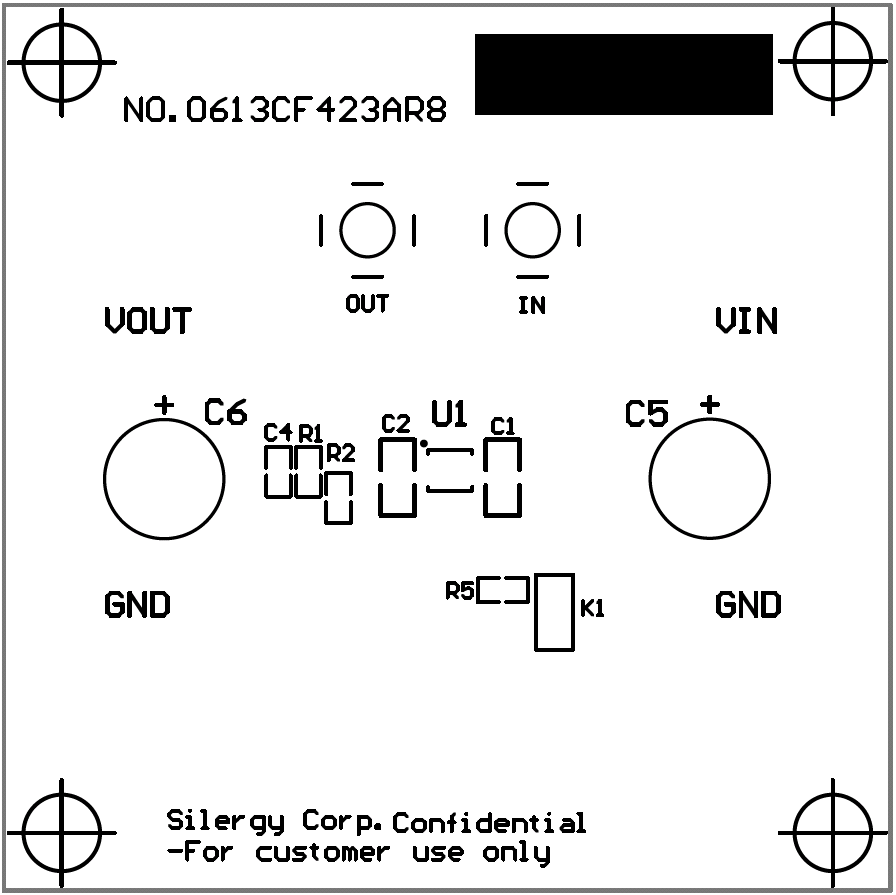

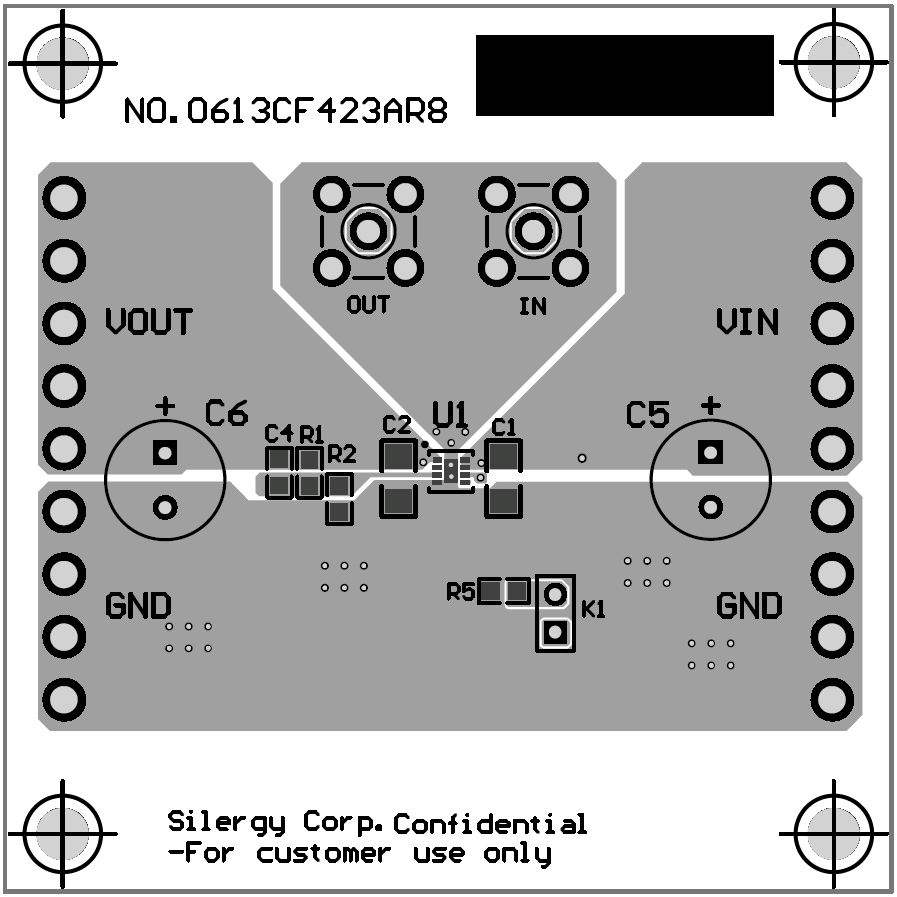

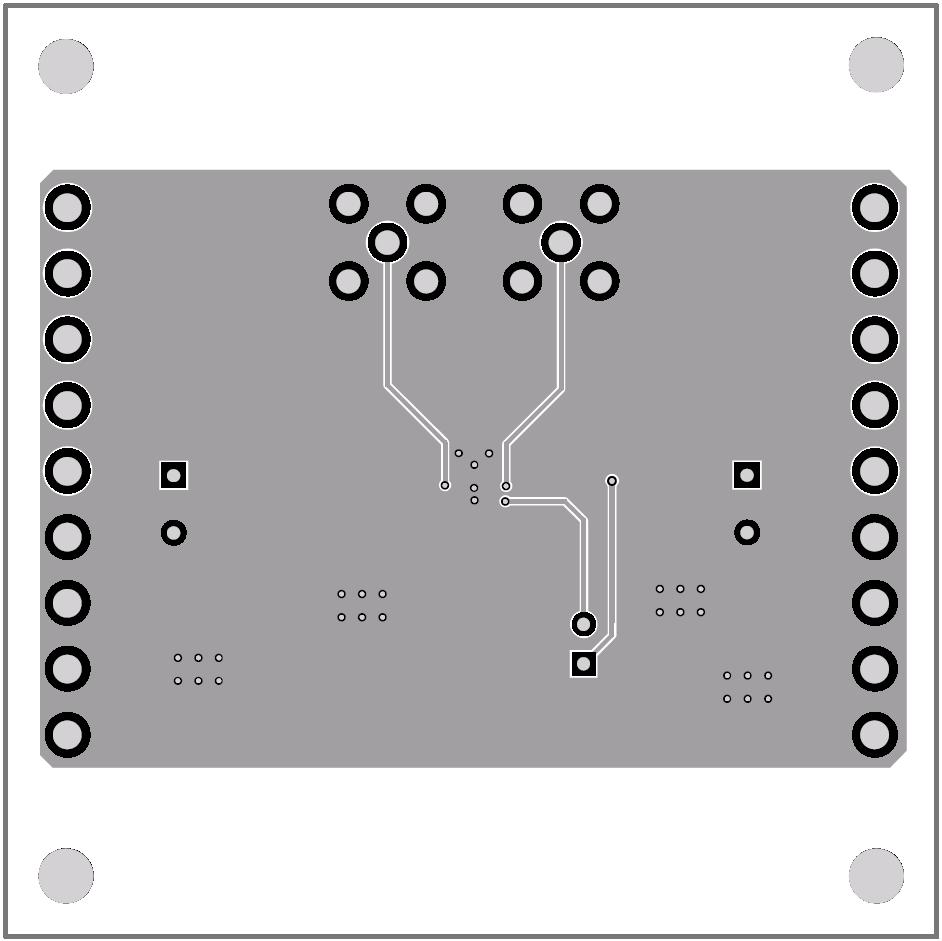

    The SA21345CDFD is available in a compact DFN2×2-8 package.
