| Part number | SA23002CTWD |
|---|---|
| Channel(#) | 1 |
| Vin (min) (V) | 2.8 |
| Vin (max) (V) | 5.5 |
| Switching frequency (min)(kHz) | 2350 |
| Switching frequency (max)(kHz) | 2350 |
| Vout (min) (V) | 0.6 |
| Vout (max) (V) | 5.5 |
| Iout (max) (A) | 2 |
| Vout2 (min)(V) | |
| Vout2 (max )(V) | |
| Iout2 (max)(A) | |
| Vref accuracy (±%) | ±1.5% |
| Vout accuracy(±%) | |
| Control mode | Peak current control |
| Duty cycle (max)(%) | 100 |
| Operation mode | FCCM |
| Iq (typ) (uA) | |
| Features | Enable,Power good,Auto-discharge,Fixed soft-start,Low ISD,Short-circuit protection with hiccup,100% duty cycle,Thermal shutdown,Cycle by cycle overcurrent protection |
| Package | DFN1.4×1.8-6 |
| Operating temperature range(°C) | -40 to 125 |
| Functional safety category |
The SA23002C high efficiency 2.35MHz synchronous buck converter operates over an input voltage range of 2.8V to 5.5V and can deliver an output current up to 2A. It integrates a top MOSFET and a bottom MOSFET with very low RDS(ON) to minimize conduction loss. The 2.35MHz constant switching frequency reduces the required external inductor and capacitor values.
The SA23002C uses a peak current mode control architecture. It operates in fixed frequency pulse width modulation (PWM) mode at light to heavy loads, thereby maintaining small output voltage ripple over the entire load current range. It also provides cycle-by-cycle current limit protection, output short-circuit protection, and overtemperature protection.
The SA23002C is available in a compact DFN1.4×1.8-6 package.

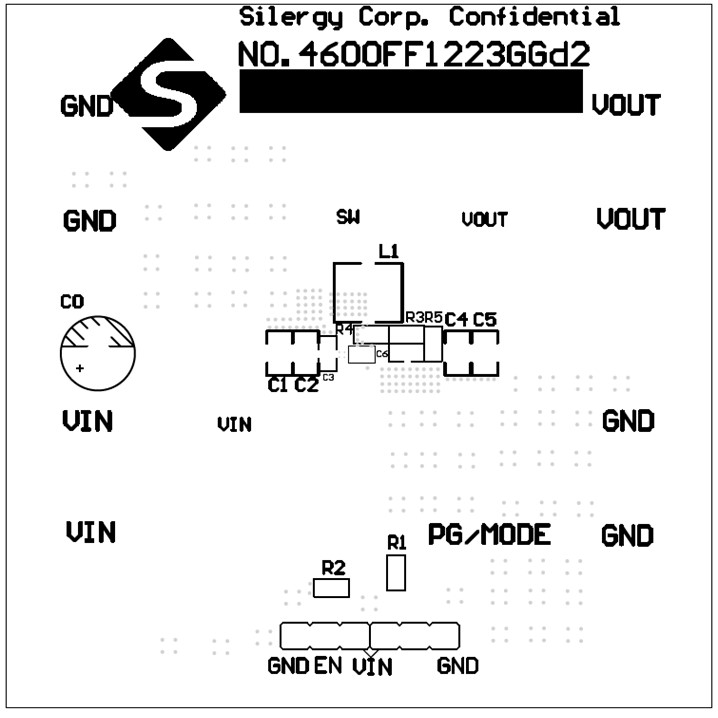

Photo of evaluation board

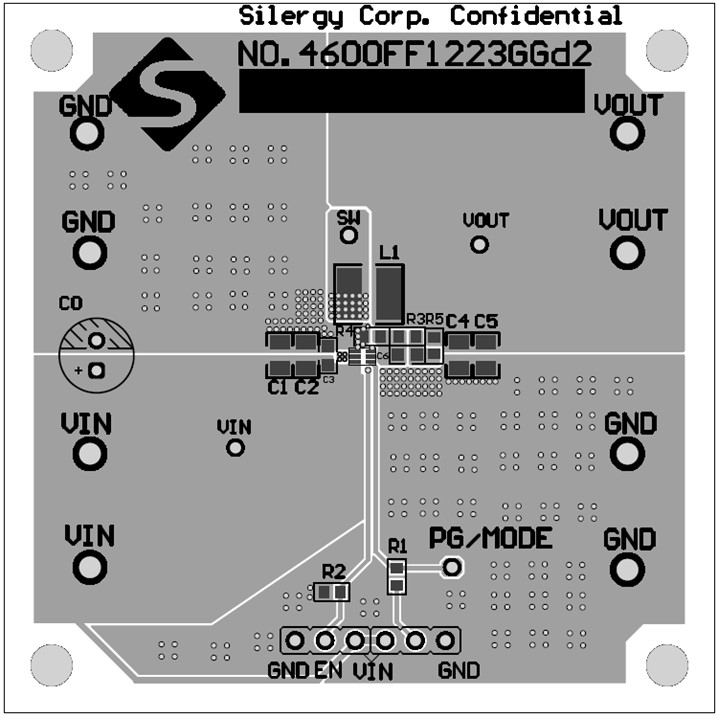

Photo of evaluation board

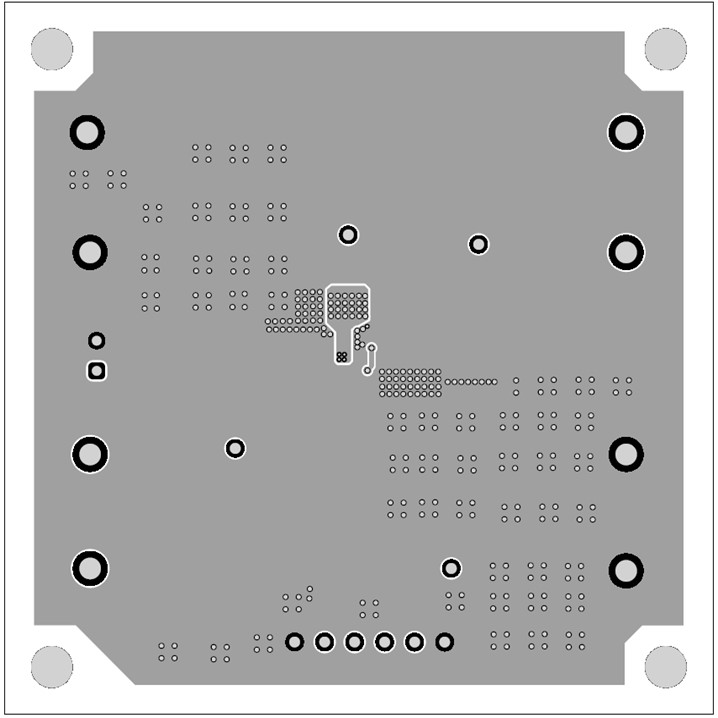

Photo of evaluation board
The EVB_SA23002CTWD is intended for evaluating 5.5V/2A, single synchronous buck converter.
