LED Matrix Manager with Internal Clock and MTP
- Parameters
- Features
- Description
| Part number | SA33756GCF |
|---|
| Description | LED Matrix Manager with Internal Clock and MTP |
|---|
| Channel(#) | 16 |
|---|
| Topology | Matrix |
|---|
| Dimming mode | PWM |
|---|
| Fsw(MHz) | |
|---|
| Vin (min) (V) | |
|---|
| Vin (max) (V) | 60 |
|---|
| Iout (max) (A) | 1.6 |
|---|
| Package | LQFP7x7-48E |
|---|
| Application | Automotive front light |
|---|
- AEC-Q100 qualified for automotive applications
- Functional Safety Quality-Managed
- 16 integrated bypass switches
- Embedded MTP memory
- UART communication is compatible with the CAN physical layer
- Integrated ADC with 2 ADC pin Inputs and IC die temperature measurement
- Programmable 10bit PWM dimming with phase shift
- LED open protection and short detection
- Integrated flow light mode and dual flashing light mode to minimize communication transactions
- Internal trimmed oscillator
- Communication system clock calibration and inter-chip system clock calibration and synchronization
Evaluation Board

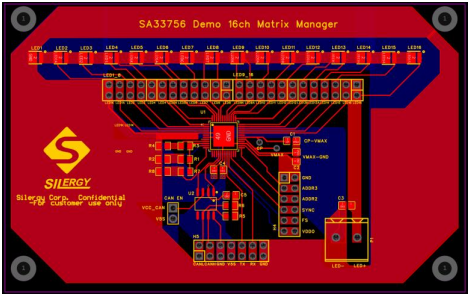

Photo of evaluation board

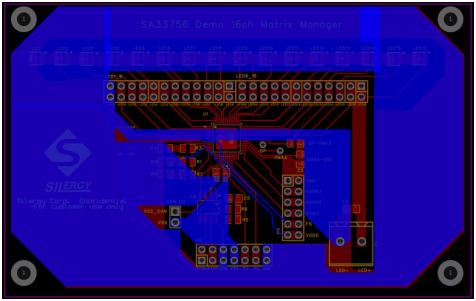

Photo of evaluation board
The EVB_SA33756GCF is intended for evaluating LED Matrix Manager with Internal Clock and MTP
