SA33766IDP

Production
Dual Channel Buck Controller for Automotive Lamp
    Part numberSA33766IDP
    Description
    Channel(#)2
    TopologyBuck
    Dimming modePWM, Analog
    Fsw(MHz)100 to 2200
    Vin (min) (V)5
    Vin (max) (V)60
    Iout (max) (A)1.6
    PackageHTSSOP-32E
    ApplicationAutomotive front light
    • Input Voltage Range from 4.5V to 60V
    • Independent Dual Channel Constant Current Buck Converter
    • ILED up to 1.6A
    • Support 10 Bits Analog Dimming and Internal or External PWM Dimming
    • Support LED Voltage from 0V-57V
    • AEC-Q100 Grade 1 Qualified
    • SPI Communication Interface
    • Stand-alone Mode, Limp-home Mode, Run Mode, Sleep Mode are Available
    • ±3% Current Accuracy at 1.6A
    • Short LED, Open LED, Thermal Shut down Protection
    • Fast LED Current Response
    • Operating Ambient Temperature Range of −40 °C to +125 °C
    • Package TSSOP32E-UP

    Evaluation Board

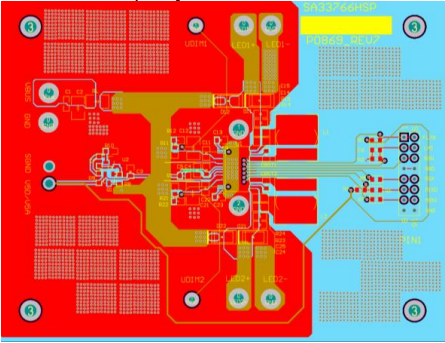

    • 2026-02-25_112832

      Photo of evaluation board

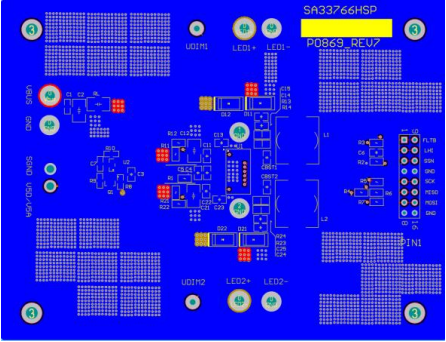

    • 2026-02-25_112843

      Photo of evaluation board

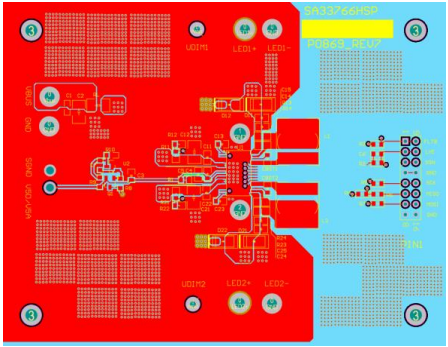

    • 2026-02-25_112759

      Photo of evaluation board

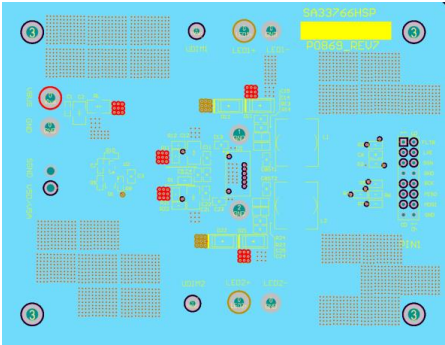

    • 2026-02-25_112816

      Photo of evaluation board

    EVB_SA33766IDP

    The EVB_SA33766IDP is intended for evaluating Two-phase Buck Controller for Automotive Front Lighting 60V input, Automotive application
