SA52631FAP

Production
40V High-side and Low-Side Gate Driver
Datasheet
SA52631FAP 40V High-side and Low-Side Gate Driver Datasheet
    Part numberSA52631FAP
    Driving FETs typeSi MOS
    Channel(#)
    Input bias voltage (V)4.4
    Output bias voltage (V)14
    Sink/Source current (A)0.75A/1.25A
    FeaturesUVP, Interlock
    PackageSOP8
    Operating temperature range(°C)-40 to 125
    Functional safety category
    • High Voltage Range up to 40 V
    • 0.75A Source and 1.25A Sink Current
    • VCC Operation Range from 4.4V to 14V
    • CMOS/TTL Compatible
    • Fast Propagation Delay Time
    • SOP8 Package
    • AEC-Q100 Qualified

    The SA52631 is a high voltage floating driver for directly driving high side and low side channels. The floating channel can be used to drive 40V N-channel MOSFET in high side configuration. Input logic is compatible with standard CMOS or TTL. Compact SOP8 package is utilized to minimize the peripheral circuit design and the difficulty of PCB mounting.

    Evaluation Board

    • 1

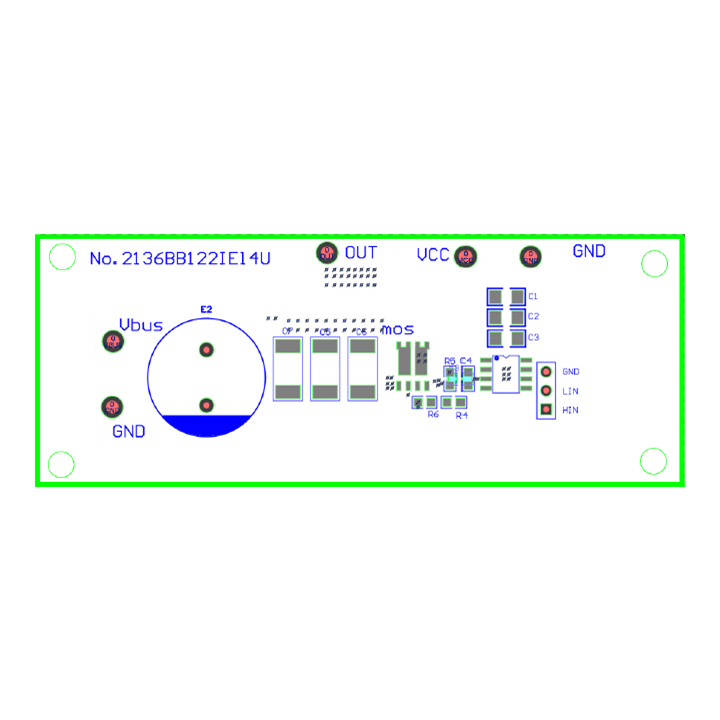

      Photo of evaluation board

    • 2

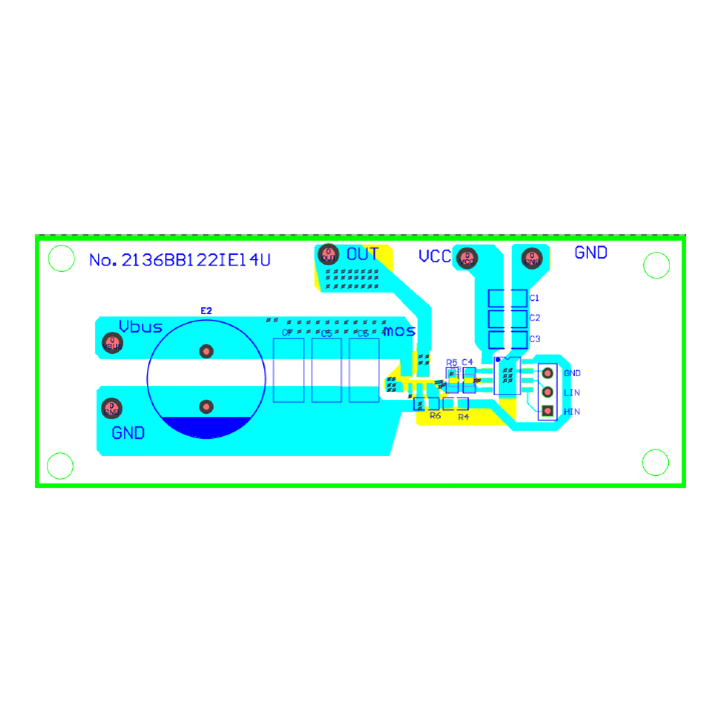

      Photo of evaluation board

    • 3

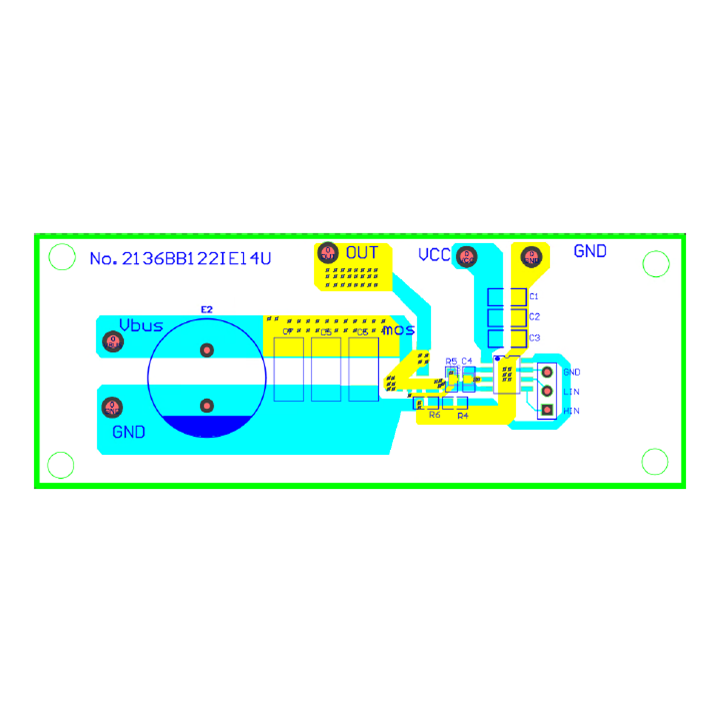

      Photo of evaluation board

    EVB_SA52631FAP

    The EVB_SA52631FAP is intended for evaluating 40V High-side and Low-Side Gate Driver SA52631FAP.
