SA52902QEQ

• H-Bridge / Half-Bridge Gate Drivers
•      --Double Charge Pump Supports 100% PWM
•      --Supports Half-Bridge, H-Bridge, and SPI Control Modes
• Smart Gate Driver Architecture
•      --0.5mA-62mA, 16-level Peak Source/Sink Current Output (SPI Configured)
•      --Integrated Dead-Time Handshaking (8-level Configurable)
• Wide Common-Mode Current Shunt Amplifier
•      --Supports Inline, High-Side or Low-Side Current Sensing
•      --Configurable Gain Settings: 10, 20, 40, 80V/V
•      --Adjustable PWM Blanking Scheme
• SPI: Comprehensive Configuration and Diagnostics
• Spread Spectrum Clocking to Reduce EMI
• Integrated Protection Features:
•      --Supply and Regulator Voltage Monitors
•      --MOSFET VDS Overcurrent and VGS Gate Fault Monitors
•      --Dedicated Driver Disable Pin (DRVOFF)
•      --Fault Condition Indicator Pin (nFLT)
•      --Device Thermal Warning and Shutdown
•      --Charge Pump for Reverse Polarity MOSFET
•      --Off State Open Load and Short Circuit Diagnostics
•      --Sleep-Mode Motor Brake
•      --Limp Home Function
• MSL Rating: MSL1
• QFN5×5-32 Package (Wettable)
• AEC-Q100 Qualified

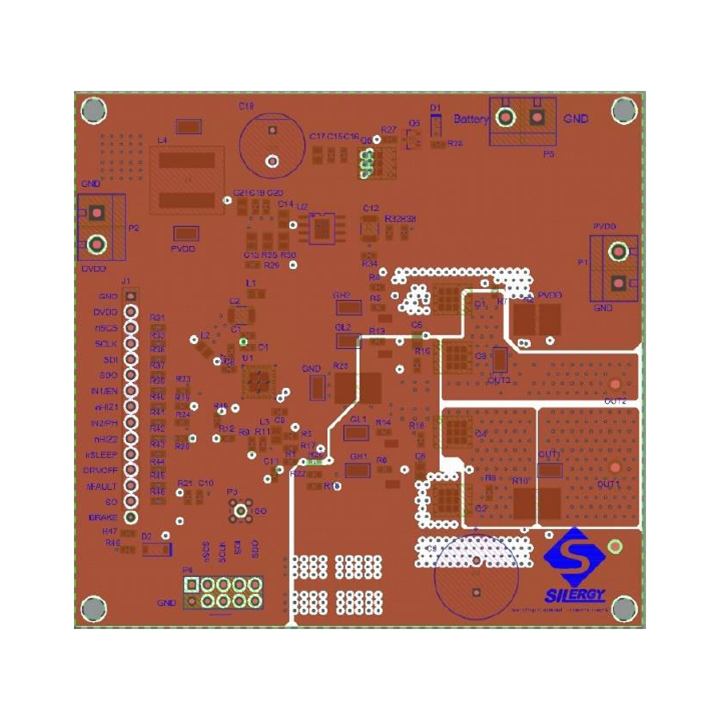

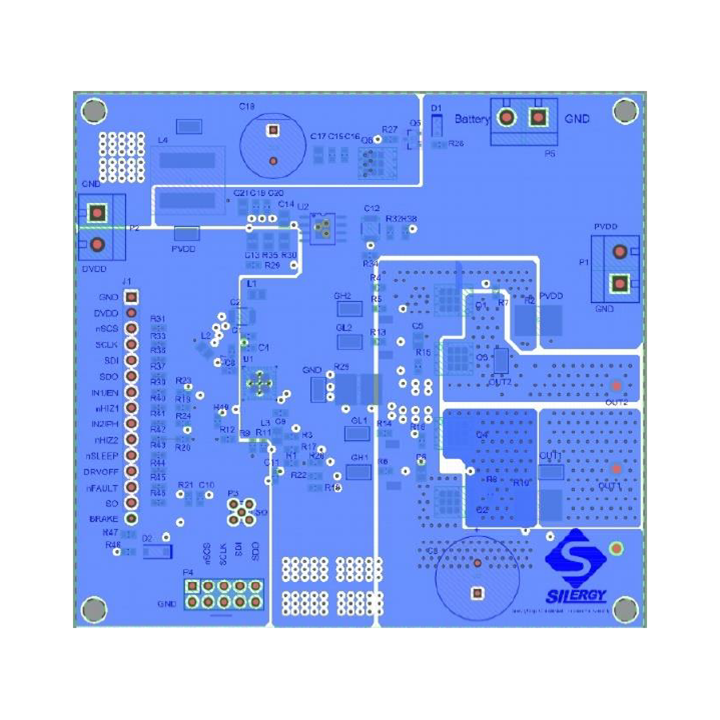

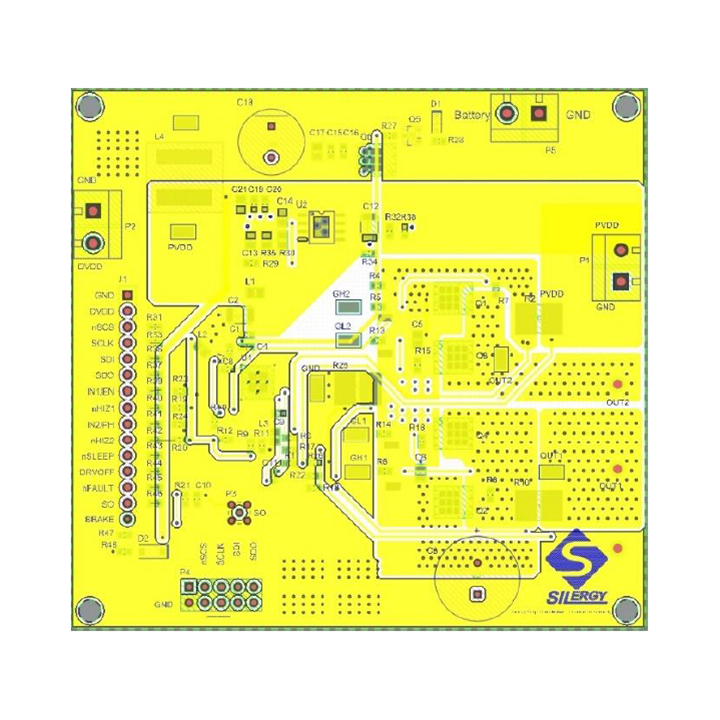

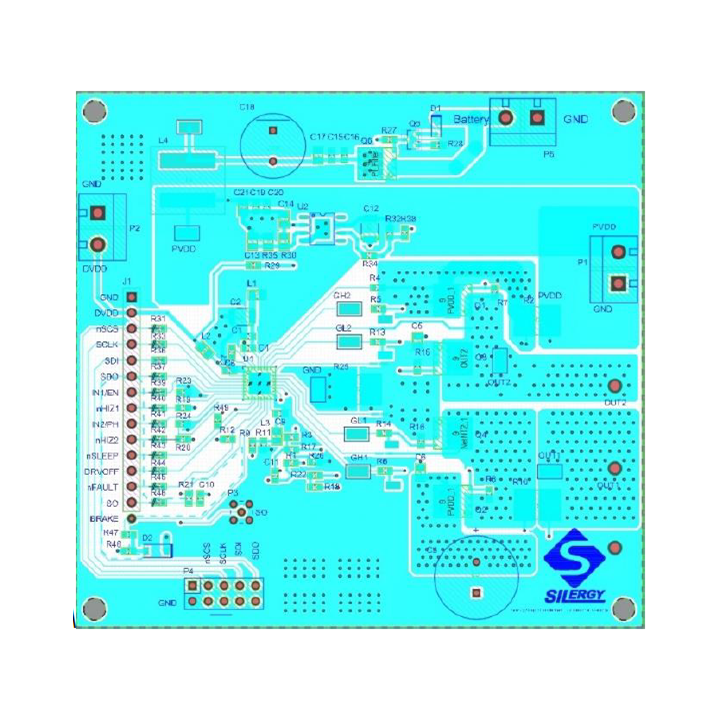

The SA52902 is a compact H-bridge gate driver designed to control high-side and low-side N-channel power MOSFETs. The device integrates driver power supplies, a current shunt amplifier, and protection monitors. The protection monitors include undervoltage and overvoltage monitors, VDS overcurrent and VGS gate fault monitors for the external MOSFETs, off-state open load and short-circuit protection, sleep mode braking, a limp home function, and internal thermal warning and shutdown. A compact QFN5×5-32 (with wettable flanks) package is utilized to minimize peripheral circuit design.
