SA52918XAQ

Production
Multi-channel Gate Drivers for Automotive Applications
    Part numberSA52918XAQ
    Vin (max) (V)37
    Vin (min) (V)4.9
    Number of half bridges8
    RDS(on) (HS + LS) (mΩ)
    Peak output current (A)
    Sleep current (µA)5.5
    Integrated FETs(Yes/No)No
    Control interfaceSPI
    FeaturesSupports 100% PWM, Propagation delay adjustment, Integrated dead-time handshaking, Supports inline current sensing, Adjustable PWM blanking, Spread spectrum clocking, Open load detection, VDS_OCP,VGS_GDF, Motor brake in sleep mode, MOSFET VDS VGS monitors
    Operating temperature range(°C)-40 to 125
    PackageQFN8×8-56
    Functional safety category
    • Multi-channel Half-bridge Gate Drivers
    •    --4 PWM Inputs with Output Mapping
    •    --Tripler Charge Pump for 100% PWM
    •    --Half-bridge, H-bridge, and SPI Control Modes
    • Adjustable Multi-channel Gate Driver
    •    --1.2mA-62mA Peak Source/Sink Current Output (SPI Configured)
    •    --Integrated Dead-time Handshaking
    •    --Configurable Propagation Delay
    • 2×Wide Common Mode Current Shunt Amplifiers
    •    --Support Inline, High-side or Low-side
    •    --Adjustable Gain Settings: 10,20,40,80 V/V
    • SPI: Detailed Configuration and Diagnostics
    • Integrated Protection Features
    •    --Supply and Regulator Voltage Monitors
    •    --MOSFET Over-Current & Gate Fault Monitors
    •    --Charge Pump for Reverse Polarity MOSFET
    •    --Off State Diagnostics
    •    --Thermal Warning and Shutdown
    •    --Watchdog Timer
    • QFN8×8-56 Package (Wettable)
    • AEC-Q100

    The SA52918 is a highly integrated, multi-channel gate driver designed for driving multiple motors. The device incorporates eight N-channel half-bridge gate drivers, integrated driver power supplies, and two current shunt amplifiers. The SA52918 offers several protections features, including under-voltage and over-voltage protection, VDS overcurrent and VGS gate fault protection for external MOSFETs. Additionally, it features off-state open load detection, short-circuit protection, and includes both an internal thermal warning system and thermal shutdown capability.

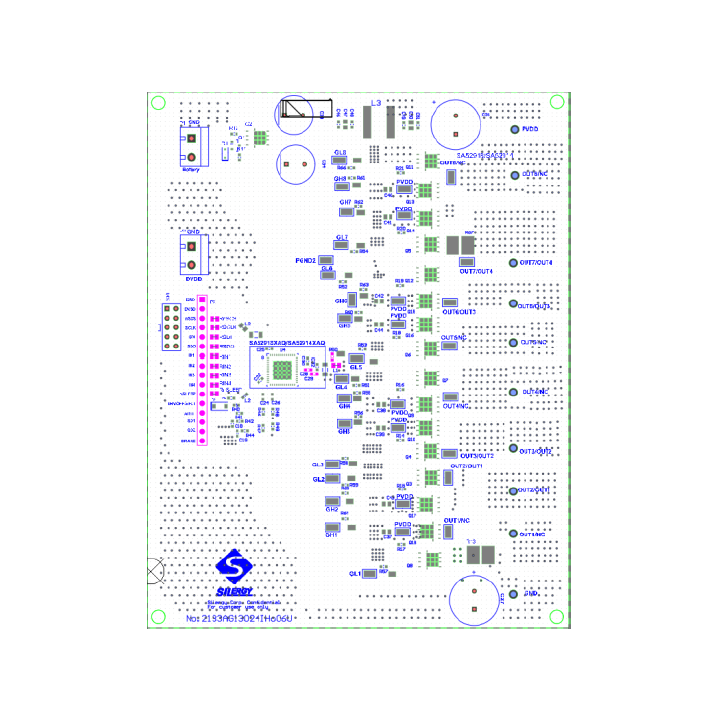

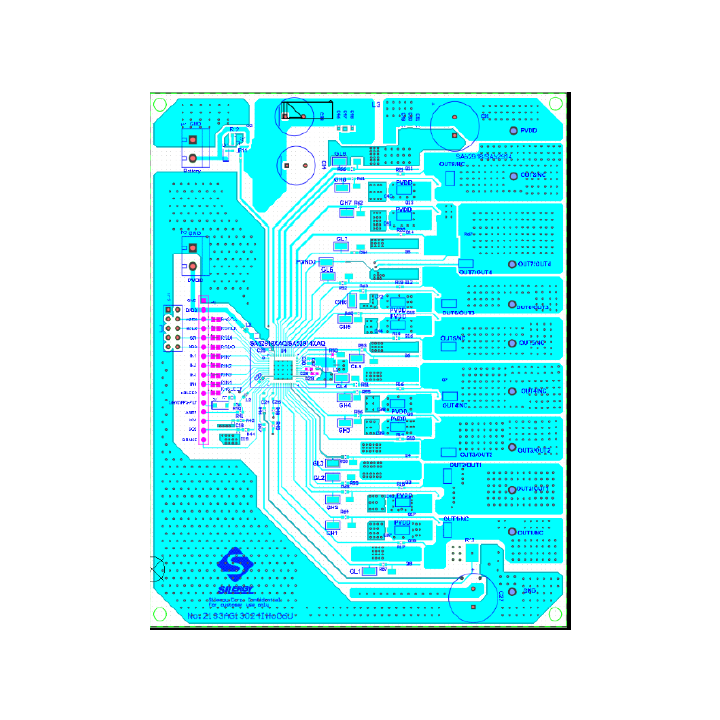

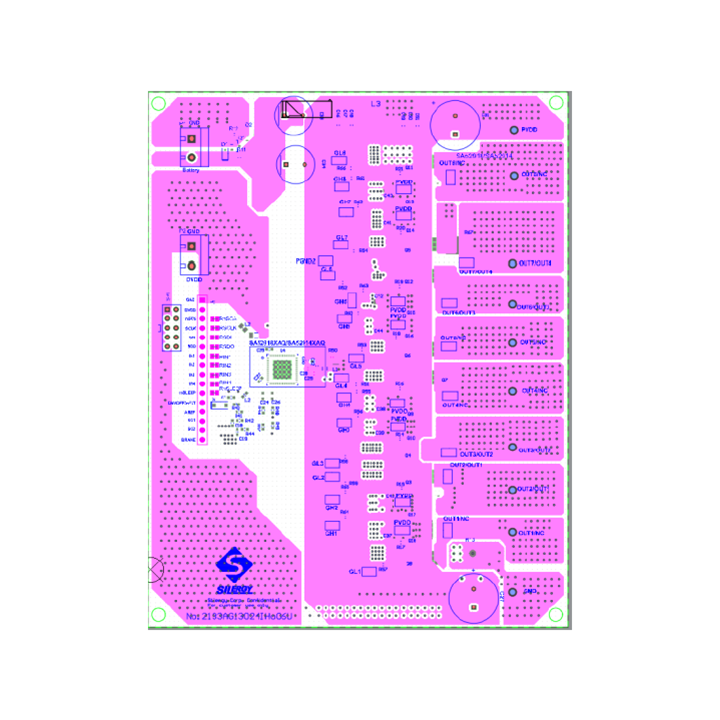

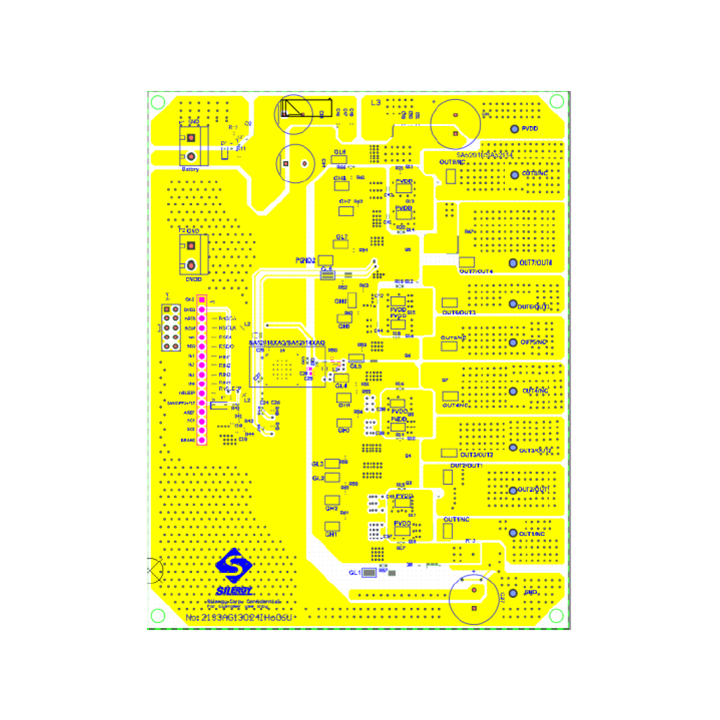

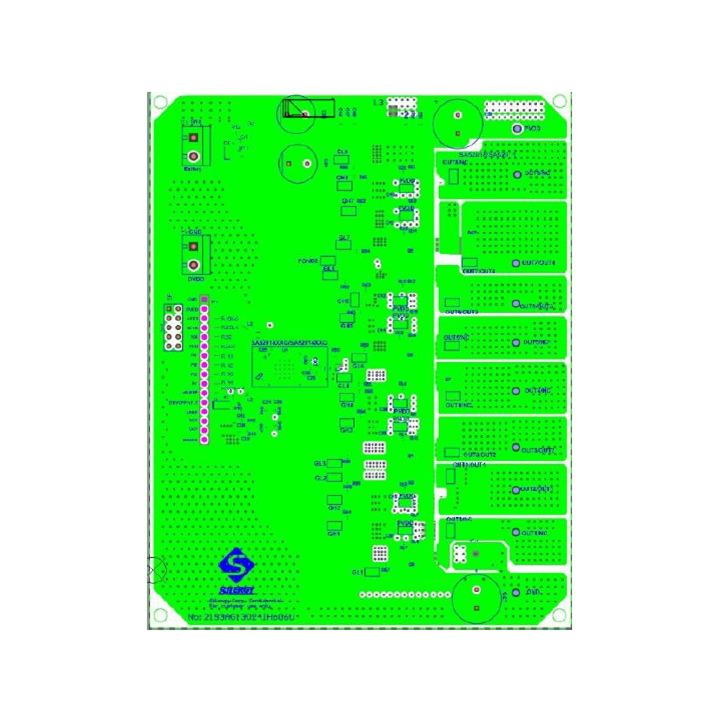

    Evaluation Board

    • 1

      Photo of evaluation board

    • 2

      Photo of evaluation board

    • 3

      Photo of evaluation board

    • 4

      Photo of evaluation board

    • 5

      Photo of evaluation board

    EVB_SA52918XAQ

    The EVB_SA52918XAQ is intended for evaluating Multi-channel Gate Drivers for Automotive Applications SA52918XAQ.

    Technical Documentation
