SQ24201E1ABT

Production
Low Loss Power Distribution Switch with Programmable Current limit
Datasheet
SQ24201E1ABT Low Loss Power Distribution Switch with Programmable Current limit Datasheet
    Part numberSQ24201E1ABT
    Vin (min) (V)2.5
    Vin (max) (V)5.5
    Vabs cont. (max) (V)6
    Iout (max) (A)2
    Protection modeOCP, OTP
    Over current responseCurrent limiting
    Current limit (A)Adjustable
    Fault responseAuto-recovery
    Ron (typ) (mΩ)65
    Certification recognition UL-US-2435031-0
    Iq (typ) (uA)45
    Enable logicHigh
    Soft start
    FeaturesReverse blocking, OCP alert
    PackageSOT23-6
    Operating temperature range(°C)-40 to 125
    Functional safety category
    • Input Voltage: 2.5V to 5.5V
    • Extremely Low Power Path Resistance: 65mΩ(Typ.)
    • Adjustable Current Limit up to 2A
    • Reverse Blocking (No Body Diode)
    • Fast Reverse Recovery
    • Fault Flag (OCB) Output for Over Current and Fault Conditions
    • At Shutdown, OUT Can Be Forced Higher than IN
    • Built-in Soft-start
    • RoHS Compliant and Halogen Free
    • Moisture Sensitivity Level (MSL): 1
    • Compact Package Minimizes the Board Space: SOT23-6
    • UL Certificate Number: UL-US-2435031-0

    The SQ24201E1 is an ultra-low RDS(ON) power distribution switch with current limit to protect the power source from over current and short circuit conditions. It incorporates over temperature protection and reverse blocking function.

    Evaluation Board

    • 24201E1ABT-1

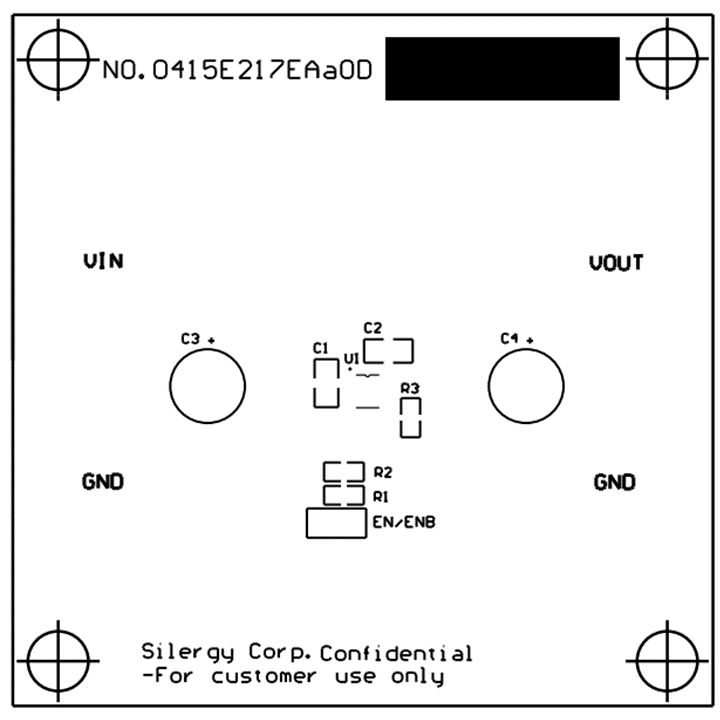

      Photo of evaluation board

    • 24201E1ABT-2

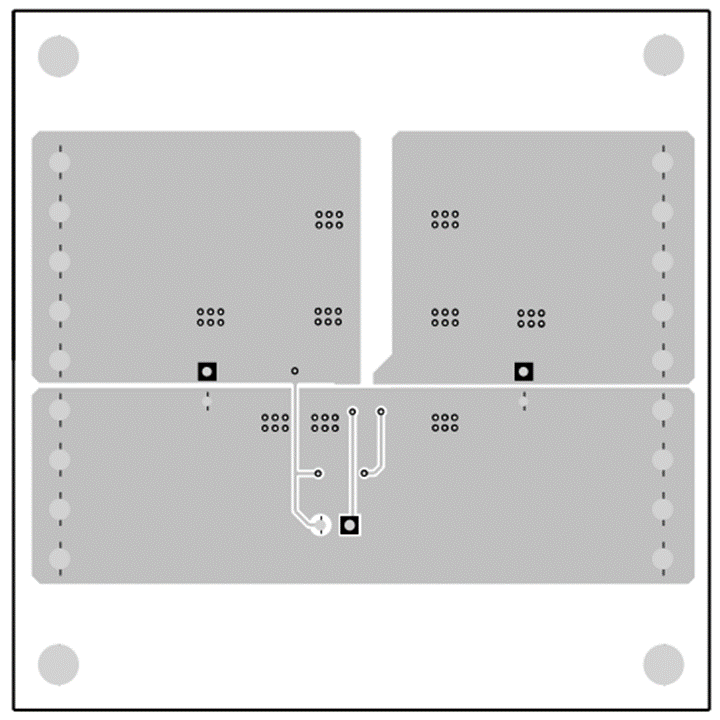

      Photo of evaluation board

    • 24201E1ABT-3

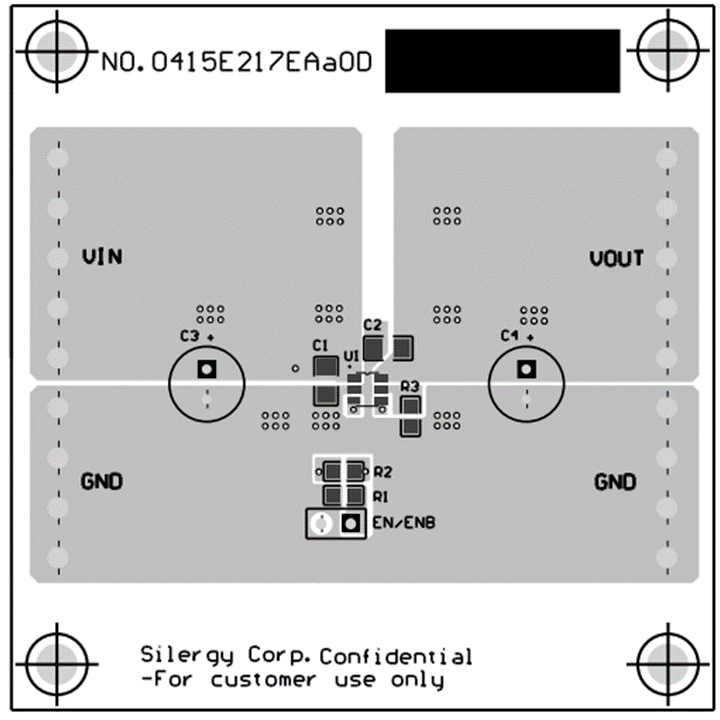

      Photo of evaluation board

    EVB_SQ24201E1ABT

    The EVB_SQ24201E1ABT is intended for evaluating the 2.5V to 5.5V input, low loss power distribution switch with programmable current limit SQ24201E1ABT.
