Low Loss Power Distribution Switch with Programmable Current limit
- Parameters
- Features
- Description
| Part Number | SQ24201E2DED |
|---|
| Vin_min (V) | 2.5 |
|---|
| Vin_max (V) | 5.5 |
|---|
| Io_max (A) | 2 |
|---|
| Rdson1 | 65 |
|---|
| Channels | 1 |
|---|
| Enable | Active Low |
|---|
| Protection Mode | |
|---|
| Features / Special Function | Reverse Blocking, Fault Flag (OCB), Built-in Soft-start |
|---|
| Package | DFN2×2-6 |
|---|
- Input Voltage: 2.5V to 5.5V
- Extremely Low Power Path Resistance: 65mΩ(Typ.)
- Adjustable Current Limit up to 2A
- Reverse Blocking (No Body Diode)
- Fast Reverse Recovery
- Fault Flag (OCB) Output for Over Current and Fault Conditions
- At Shutdown, OUT Can Be Forced Higher than IN
- Built-in Soft-start
- RoHS Compliant and Halogen Free
- Compact Package Minimizes the Board Space: DFN2×2-6
- UL Certificate Number: UL-US-2435031-0
The SQ24201E is an ultra-low RDS(ON) power distribution switch with current limit to protect the power source from over current and short circuit conditions. It incorporates over temperature protection and reverse blocking function.
The SQ24201E2DED is available in DFN2×2-6 package.
Evaluation Board

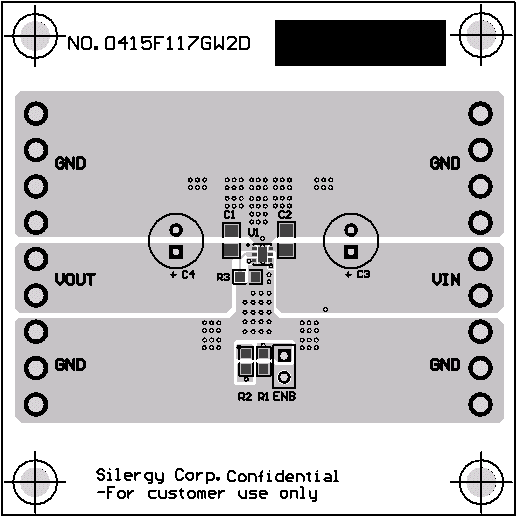

Photo of evaluation board

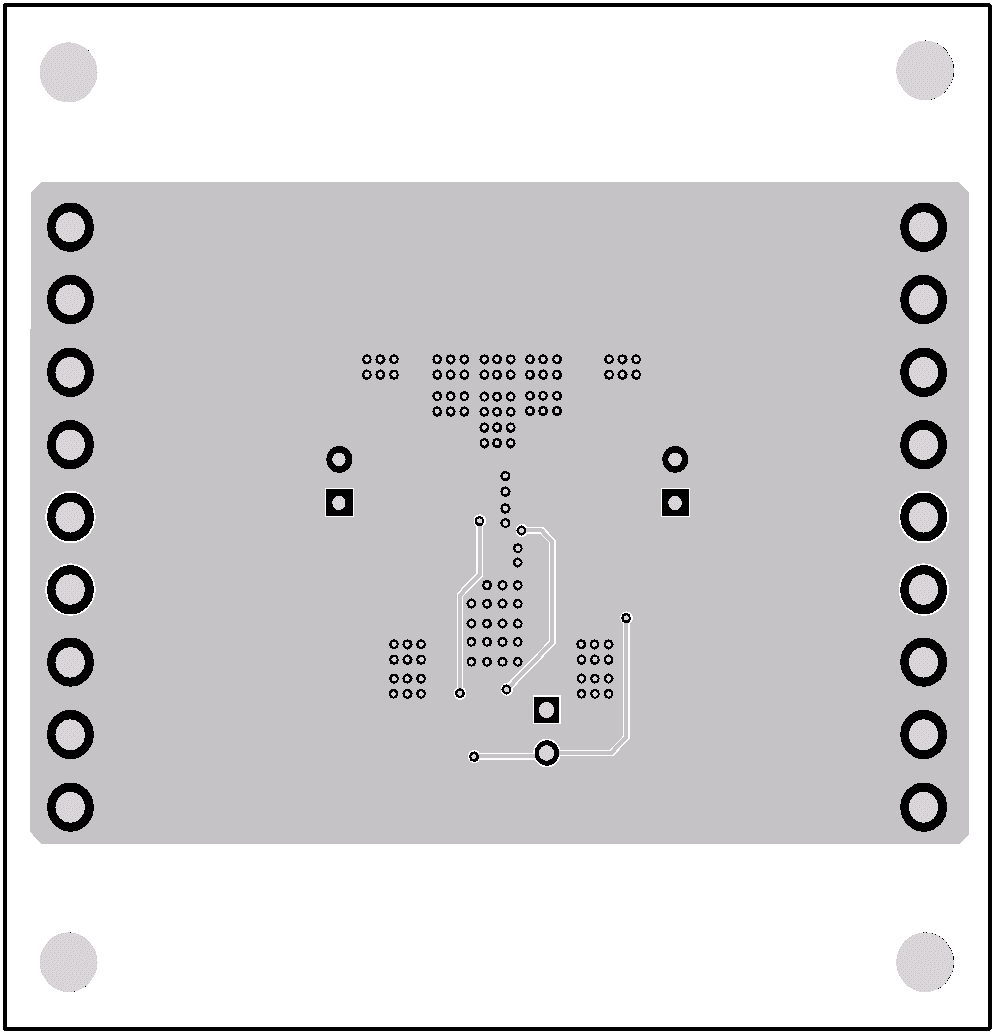

Photo of evaluation board

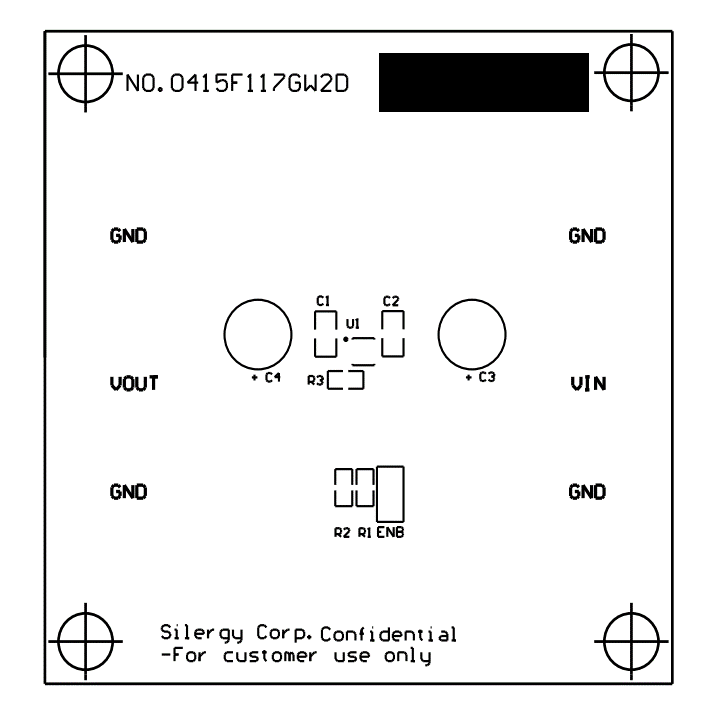

Photo of evaluation board
The EVB_SQ24201E2DED is intended for evaluating 2.5V to 5.5V input, low loss power distribution Switch with programmable current limit SQ24201E2DED.
