SQ24802K1DFD

Production
4.2V to 16V, 5A, 31mΩ eFuse with Over-voltage Protection
Datasheet
SQ24802K1DFD 4.2V to 16V, 5A, 31mΩ eFuse with Over-voltage Protection Datasheet
    Part numberSQ24802K1DFD
    Vin (min) (V)4.2
    Vin (max) (V)16
    Vabs cont. (max) (V)18
    Iout (max) (A)5
    Protection modeOCP, VCP, OTP
    Over current responseCurrent limiting
    Current limit (A)Adjustable
    Fault responseAuto-recovery
    Ron (typ) (mΩ)31
    Certification recognition
    Iq (typ) (uA)72
    Enable logicHigh
    Soft startAdjustable
    Features
    PackageDFN2×2-8
    Operating temperature range(°C)-40 to 125
    Functional safety category
    • Low Power Path Resistance：RDS(ON)=31mΩ (Typical)
    • Overvoltage Protection Clamp at 14V
    • Adjustable Current Limit (ILIMIT) : 1A to 5A
    • Adjustable Output Slew Rate Control (SLEW)
    • Overtemperature Protection (OTP)
    • Fault Indication Pin (FLT_N)
    • Protection Mode: Auto-Restart
    • Operating Voltage Range: 4.2V to 16V, VABSMAX = 18V
    • Compact Package: DFN2x2-8

    The SQ24802K1 is a compact and fully integrated eFuse that provides power management and circuit protection capabilities. The SQ24802K1 requires minimal external components and provides various protection modes. It can effectively protect against overvoltage, overload, short circuit, and excessive inrush current conditions.

    The current limit threshold can be easily configured using an external resistor. Additionally, internal output clamping circuit can effectively limit the occurrence of overvoltage events without the need for external components.

    Applications with specific voltage ramp requirements can use a single capacitor to regulate dV/dT and ensure the desired output ramp rate.

    The SQ24802K1 is available in a compact DFN 2mm2mm – 8pin package.

    Evaluation Board

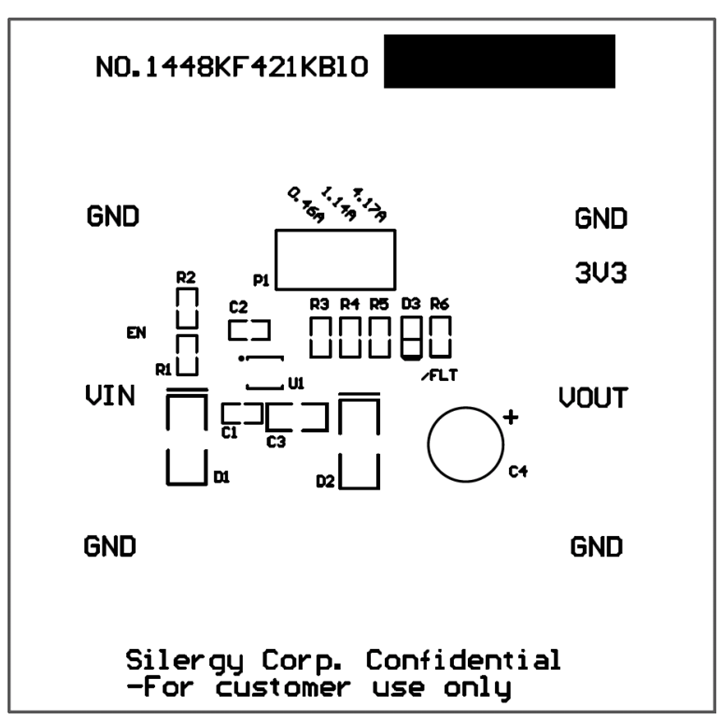

    • 24802K1-1

      Photo of evaluation board

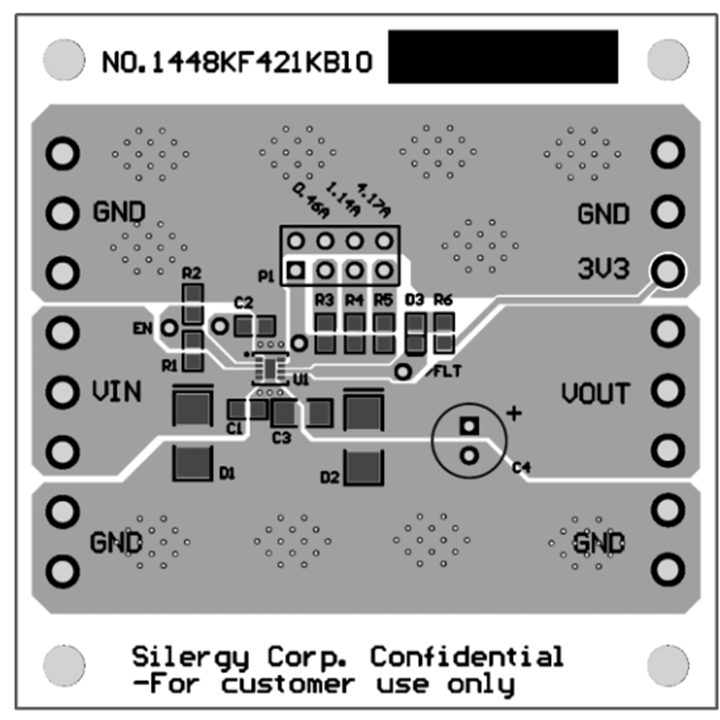

    • 24802K1-2

      Photo of evaluation board

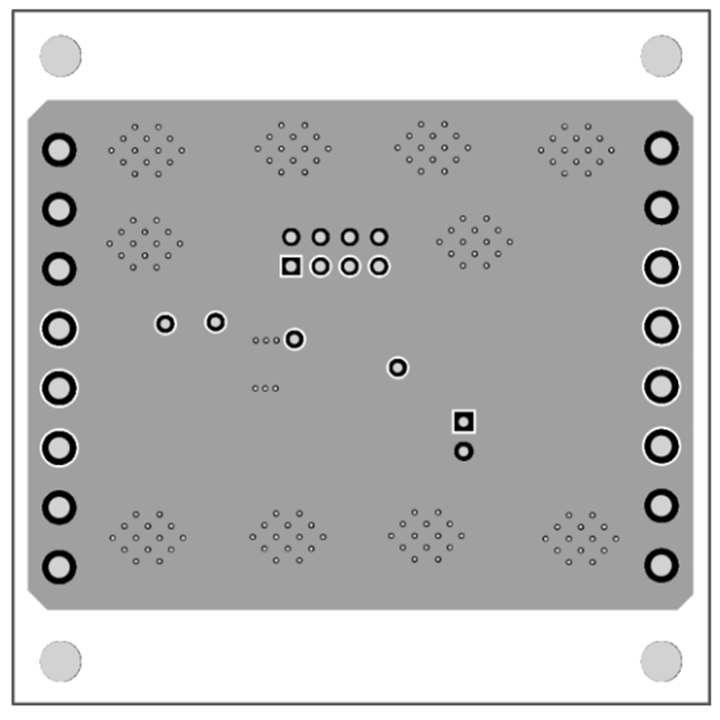

    • 24802K1-3

      Photo of evaluation board

    EVB_SQ24802K1DFD

    The EVB_SQ24802K1DFD is intended for evaluating 4.2V to 16V, 5A, 31mΩ eFuse with Over-voltage Protection SQ24802K1DFD.
