16bit, 8-Channel, Simultaneous Sampling ADC with Bipolar Inputs
![]()
- Parameters
- Features
- Description
| Part number |
SQ82807GDF |
| Resolution (bit) |
16 |
| Sample rate (max)(ksps) |
500 |
| Channel(#) |
8 |
| Interface |
Parallel/Serial |
| SNR (dB) |
90.1 |
| INL (max)(LSB) |
±3.5 |
| Input type |
Bipolar |
| Power consumption (typ)(mW) |
75 |
| Architecture |
SAR |
| Reference mode |
Internal/External |
| Package |
LQFP-64(10×10mm) |
| Operating temperature range(°C) |
-40 to 125 |
- 16-bit ADC with 500kSPS on All Channels
- Configurable Input Ranges: ±10V and ±5V
- Input Buffer with 1MΩ Analog Input Impedance
- Overvoltage Input Clamp Protection with 8kV ESD
- Single 5V Analog Supply and 1.8V to 5V Digital Power Supply
- -40°C to +125°C Operating Temperature Range
- Oversampling Capability with Digital Filter
- Package: 64-Pin LQFP
- MSL information：MSL-3
The SQ82807 is a 16-bit, 8-channel, bipolar input, simultaneous sampling analog-to-digital converter (ADC). It provides a sample rate of up to 500kSPS for all channels.
The SQ82807 operates from a single 5V supply and can be configured for either ±10V or ±5V true bipolar input ranges. It also offers flexible parallel and serial interfaces for data acquisition. The input clamp protection tolerates voltages up to ±20V.
The input impedance of the SQ82807 is 1MΩ, allowing for direct connection to sensors or transformers. The SQ82807 also features a programmable gain amplifier (PGA), a low-pass filter, and a 16-bit successive approximation register (SAR) for each channel. It also features a low drift 2.5V precision reference and a voltage reference buffer.
The SQ82807 supports an oversampling capability with a ratio of up to 64 for improved AC performance.
The high DC accuracy of the SQ82807 makes it suitable for precision industrial applications. The typical total unadjusted error (TUE) is ±4 LSB.
The SQ82807 can operate within a temperature range from -40°C to +125°C. It is available in an LQFP-64 package.

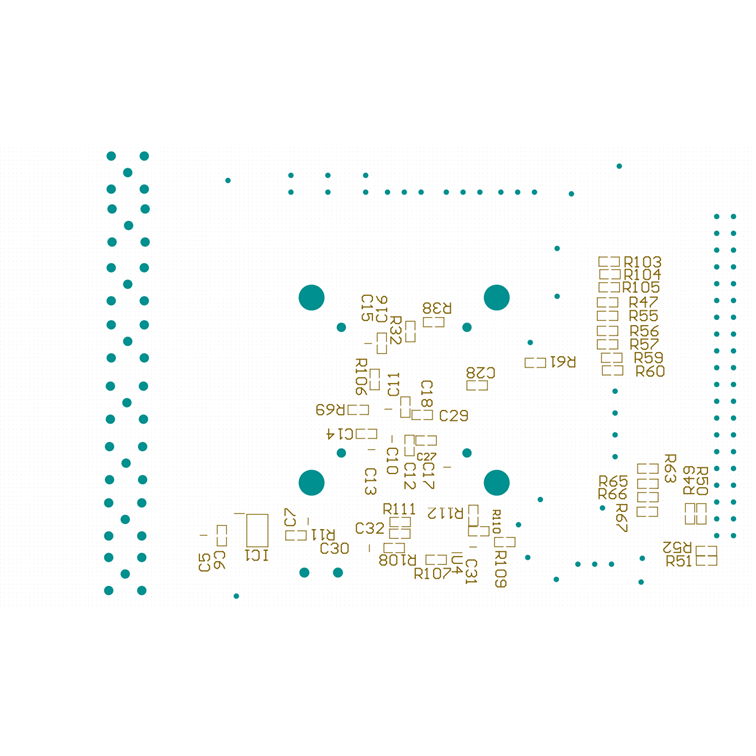

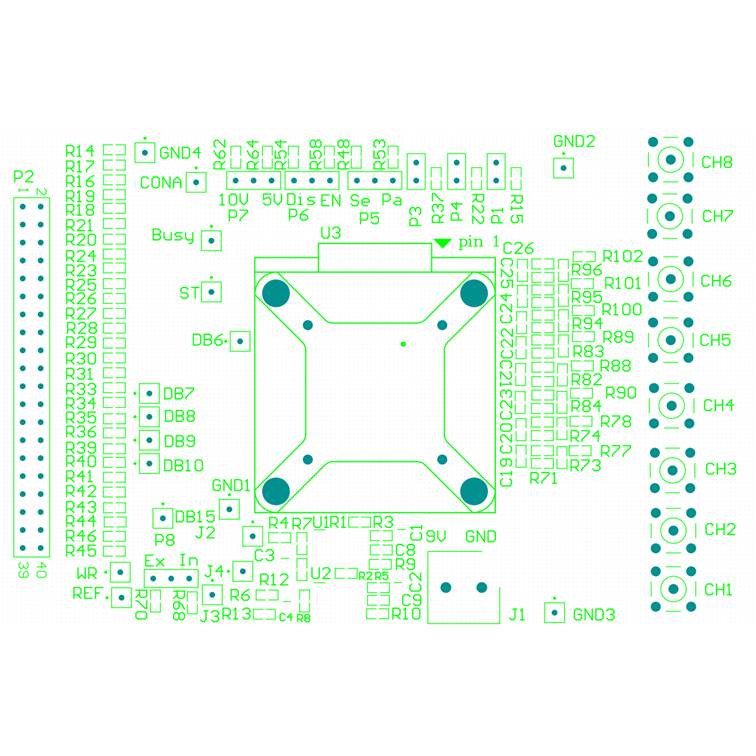

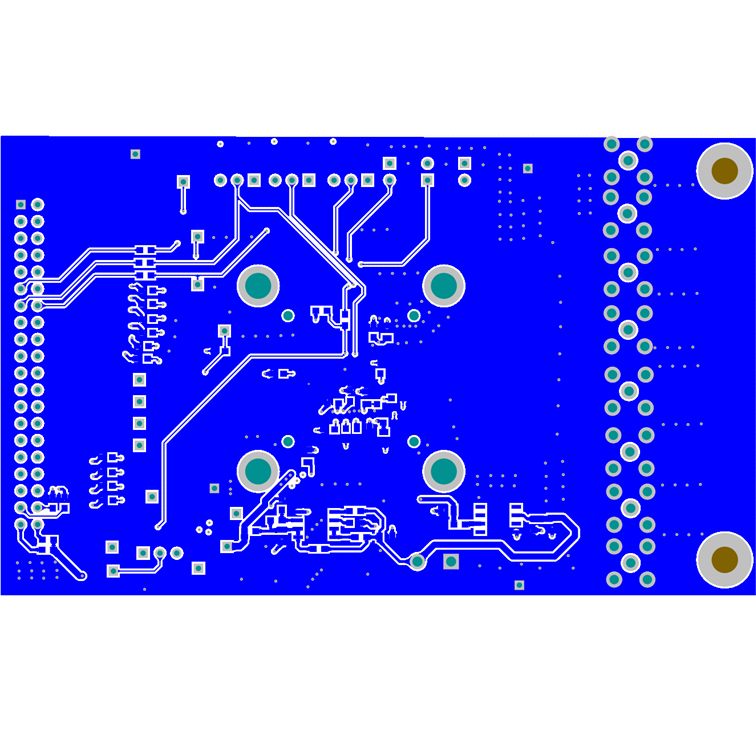

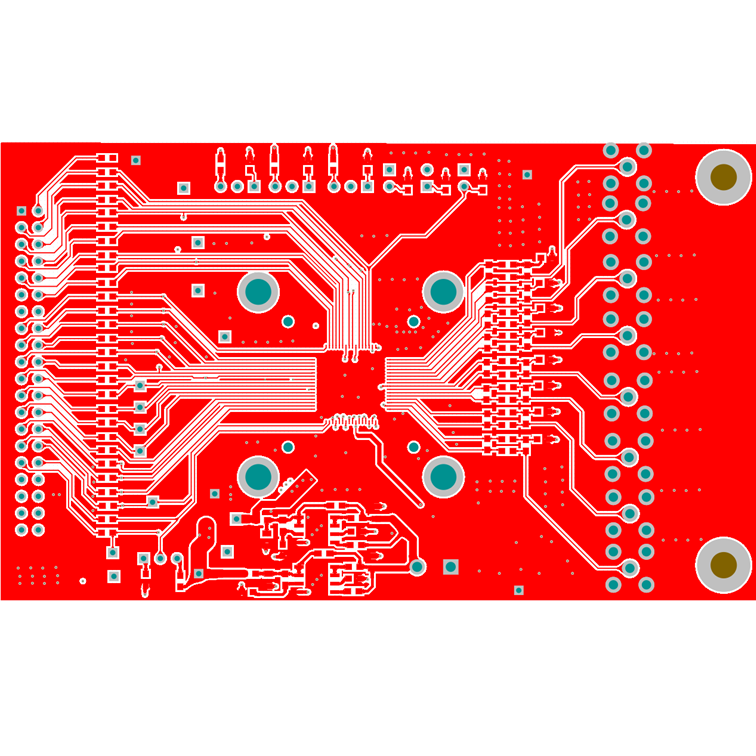

Evaluation Board
-
Photo of evaluation board
-
Photo of evaluation board
-
Photo of evaluation board
-
Photo of evaluation board
The EVB_SQ82807GDF is intended for evaluating 16bit, 8-Channel, Simultaneous Sampling ADC with Bipolar Inputs.
