SY20018A1AAC (SY8088A1AAC)

Production
High Efficiency, 1.5MHz, 1A Synchronous Step Down Regulator
Datasheet
SY20018A1AAC High Efficiency, 1.5MHz, 1A Synchronous Step Down Regulator Datasheet
    Part numberSY20018A1AAC
    Channel(#)1
    Vin (min) (V)2.5
    Vin (max) (V)5.5
    Switching frequency (min)(kHz)1500
    Switching frequency (max)(kHz)1500
    Vout (min) (V)0.6
    Vout (max) (V)5
    Iout (max) (A)1
    Vout2 (min)(V)
    Vout2 (max )(V)
    Iout2 (max)(A)
    Vref accuracy (±%)1.5
    Vout accuracy(±%)
    Control modeCOT OFF+Ipeak
    Duty cycle (max)(%)100
    Operation modeAuto PFM
    Iq (typ) (uA)50
    Features
    PackageSOT23-5
    Operating temperature range(°C)-40 to 125
    Functional safety category
    • 2.5V to 5.5V Input Voltage Range
    • 50μA Low Quiescent Current
    • Low RDS(ON) for Internal Switches (Top/Bottom): 260mΩ /160mΩ
    • High Switching Frequency 1.5MHz Minimizes the External Components
    • Internal Soft-start Limits the Inrush Current
    • 100% Dropout Operation
    • Reliable Short Circuit Protection
    • Without Output Auto Discharge Function
    • RoHS Compliant and Halogen Free
    • Compact Package: SOT23-5

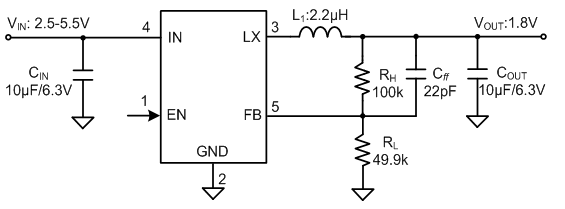

     The SY20018A1 is a high efficiency 1.5MHz synchronous step down DC/DC regulator, which is capable of delivering up to 1A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate a main switch and a synchronous switch with very low RDS(ON) to minimize the conduction loss.

    The low output voltage ripple, the small external inductor and the capacitor sizes are achieved with 1.5MHz switching frequency.

    Evaluation Board

    • 20018A1-1

      Photo of evaluation board

    • 20018A1-2

      Photo of evaluation board

    • 20018A1-3

      Photo of evaluation board

    EVB_SY20018A1AAC

    The EVB_SY20018A1AAC is intended for evaluating 1.5MHz 1A synchronous Buck regulator. It features Enable control.
