SY20019EARC (SY8891EARC)

Production
High Efficiency, 1.5MHz, 5.5V/1A Synchronous Step Down Regulator
Datasheet
SY20019EARC High Efficiency, 1.5MHz, 5.5V/1A Synchronous Step Down Regulator Datasheet
    Part numberSY20019EARC
    Channel(#)1
    Vin (min) (V)2.5
    Vin (max) (V)5.5
    Switching frequency (min)(kHz)1500
    Switching frequency (max)(kHz)1500
    Vout (min) (V)0.6
    Vout (max) (V)5
    Iout (max) (A)1
    Vout2 (min)(V)
    Vout2 (max )(V)
    Iout2 (max)(A)
    Vref accuracy (±%)1.5
    Vout accuracy(±%)
    Control modeCOT OFF+Ipeak
    Duty cycle (max)(%)100
    Operation modeFCCM
    Iq (typ) (uA)
    FeaturesPower good, Output discharge
    PackageSOT563
    Operating temperature range(°C)-40 to 125
    Functional safety category
    • 2.5V to 5.5V Input Voltage Range
    • Low RDS(ON) for Internal Switches (Top/Bottom) : 170mΩ /100mΩ
    • High Switching Frequency 1.5MHz Minimizes the External Components
    • Internal Soft-start Limits the Inrush Current
    • 100% Dropout Operation
    • Forced PWM Operation
    • Power Good Indicator
    • Hic-cup for Short Circuit Protection
    • Output Auto Discharge Function
    • RoHS Compliant and Halogen Free
    • Compact Package: SOT563



     SY20019E is a high efficiency 1.5MHz synchronous step down DC/DC regulator, capable of delivering up to 1A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss.

    SY20019E is in a space saving, low profile SOT563 package.

    Evaluation Board

    • 20019E-1

      Photo of evaluation board

    • 20019E-2

      Photo of evaluation board

    EVB_SY20019EARC

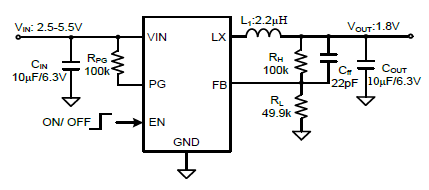

    The EVB_SY20019EARC is intended for evaluating 1.5 MHz, 1A, 2.5~5.5V input, 1.8V output synchronous Buck regulator. It features enable control.
