SY20053DQC (SY80053DQC)

Production
16μA Ultra Low IQ, 2.2MHz Synchronous Step Down Regulator
Datasheet
SY20053DQC 16μA Ultra Low IQ, 2.2MHz Synchronous Step Down Regulator Datasheet
    Part numberSY20053DQC
    Channel(#)1
    Vin (min) (V)2.4
    Vin (max) (V)5.5
    Switching frequency (min)(kHz)2200
    Switching frequency (max)(kHz)2200
    Vout (min) (V)0.6
    Vout (max) (V)5
    Iout (max) (A)3
    Vout2 (min)(V)
    Vout2 (max )(V)
    Iout2 (max)(A)
    Vref accuracy (±%)1 (over temperature)
    Vout accuracy(±%)
    Control modeCOT+Ripple
    Duty cycle (max)(%)100
    Operation modeAuto PFM
    Iq (typ) (uA)16
    FeaturesPower good,Output discharge
    PackageDFN1.5×1.5-6
    Operating temperature range(°C)-40 to 125
    Functional safety category
    • 2.4V to 5.5V Input Voltage Range
    • Ultra-fast Load Transient Speed
    • Low RDS(ON) for Internal Switches (Top/Bottom):35mΩ /25mΩ
    • High Switching Frequency 2.2MHz Minimizes the External Components
    • ±1% Feedback or Output Voltage Accuracy
    •  (Full Temperature Range)
    • PFM Mode for Light Load Efficiency
    • 16μA Operating Quiescent Current
    • Internal Soft-start Limits the Inrush Current
    • 100% Dropout Operation
    • Output Auto Discharge Function
    • Power Good Indicator
    • Auto Recovery for SCP/OVP/OTP Protection
    • RoHS Compliant and Halogen Free
    • Compact Package: DFN1.5×1.5-6

     The SY20053 is a high efficiency 2.2MHz synchronous step down DC/DC regulator capable of delivering up to 3A output current. It can operate over a wide input voltage range from 2.4V to 5.5V and integrates main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss.

    The SY20053 is in a space saving, low profile DFN1.5x1.5-6 package.

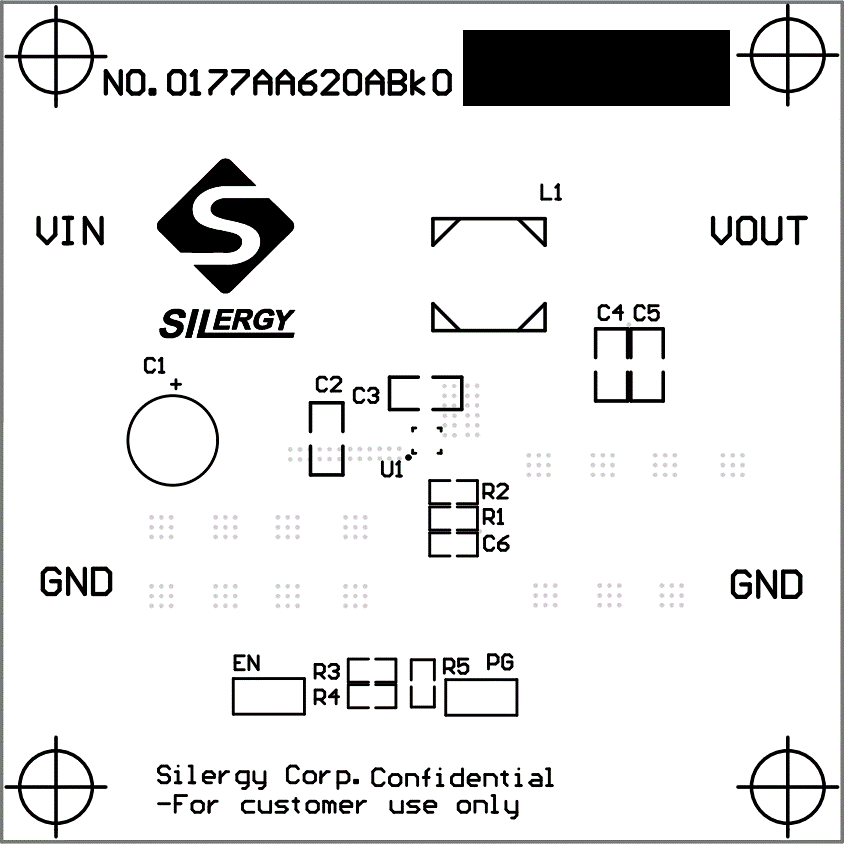

    Evaluation Board

    • 01

      Photo of evaluation board

    • 02

      Photo of evaluation board

    • 03

      Photo of evaluation board

    EVB_SY20053DQD

    The EVB_SY20053DQD is intended for evaluating 16μA Ultra Low IQ, 2.2MHz, 3A

    Synchronous Step Down Regulator SY20053DQD.
