High Efficiency, 1.2MHz, 3A Buck
![]()
- Parameters
- Features
- Description
| Part number | SY20112ARC |
|---|
| Channel(#) | 1 |
|---|
| Vin (min) (V) | 2.5 |
|---|
| Vin (max) (V) | 5.5 |
|---|
| Switching frequency (min)(kHz) | 1200 |
|---|
| Switching frequency (max)(kHz) | 1200 |
|---|
| Vout (min) (V) | 0.6 |
|---|
| Vout (max) (V) | 5 |
|---|
| Iout (max) (A) | 3 |
|---|
| Vout2 (min)(V) | |
|---|
| Vout2 (max )(V) | |
|---|
| Iout2 (max)(A) | |
|---|
| Vref accuracy (±%) | 1.5 |
|---|
| Vout accuracy(±%) | |
|---|
| Control mode | COT OFF+Ipeak |
|---|
| Duty cycle (max)(%) | 100 |
|---|
| Operation mode | Auto PFM |
|---|
| Iq (typ) (uA) | 50 |
|---|
| Features | Power good, Output discharge |
|---|
| Package | SOT563 |
|---|
| Operating temperature range(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- 2.5V to 5.5V Input Voltage Range
- 50μA Low Quiescent Current
- Low RDS(ON) for Internal Switches (Top/Bottom) 100mΩ /60mΩ
- High Switching Frequency 1.2MHz Minimizes the External Components
- Internal Soft-start Limits the Inrush Current
- 100% Dropout Operation
- Hic-cup for Short Circuit Protection
- Output Auto Discharge Function
- RoHS Compliant and Halogen Free
- Compact Package: SOT563
The SY20112 high-efficiency 1.2MHz synchronous step-down DC/DC regulator operates over a wide input voltage range of 2.5V to 5.5V and can deliver an output current up to 3A with a low quiescent current of 50µA. To minimize conduction loss, it integrates a main switch and a synchronous switch with very low RDS(ON).
The SY20112 adopts constant off-time and peak current mode control. The SY20112 is highly integrated, so only the input and output capacitors, inductor, and resistor-divider components need to be selected for the targeted application specifications.
The SY20112 is available in a space-saving, low-profile SOT563 package.
Evaluation Board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board

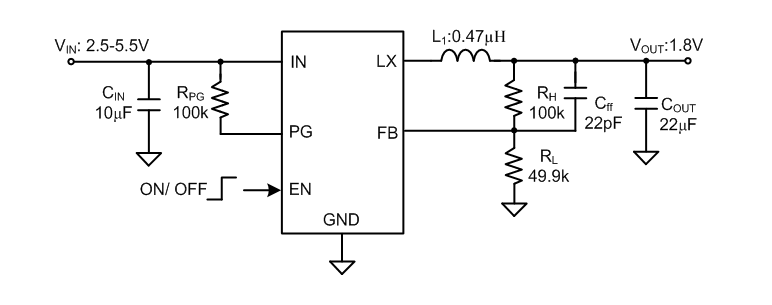

The EVB_SY20112ARC is intended for evaluating 1.2 MHz, 3A, 2.5~5.5V input, 1.8V output synchronous Buck regulator. It features enable control.
