High Efficiency, 1.2MHz, 3A, Synchronous Step Down Regulator
![]()
- Parameters
- Features
- Description
| Part number | SY20112EARC |
|---|
| Channel!(#) | 1 |
|---|
| Vin (min) !(V) | 2.5 |
|---|
| Vin (max) !(V) | 5.5 |
|---|
| Switching frequency (min)!(kHz) | 1200 |
|---|
| Switching frequency (max)!(kHz) | 1200 |
|---|
| Vout (min) !(V) | 0.6 |
|---|
| Vout (max) !(V) | 5 |
|---|
| Iout (max) !(A) | 3 |
|---|
| Vout2 (min)!(V) | |
|---|
| Vout2 (max )!(V) | |
|---|
| Iout2 (max)!(A) | |
|---|
| Vref accuracy! (±%) | 1.5 |
|---|
| Vout accuracy!(±%) | |
|---|
| Control mode | COT OFF+Ipeak |
|---|
| Duty cycle (max)!(%) | 100 |
|---|
| Operation mode | FCCM |
|---|
| Iq (typ) !(uA) | |
|---|
| Features | Power good,Output discharge |
|---|
| Package | SOT563 |
|---|
| Operating temperature range!(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
-
2.5V to 5.5V Input Voltage Range
-
Low RDS(ON) for Internal Switches (Top/Bottom) 100mΩ /60mΩ
-
High Switching Frequency 1.2MHz Minimizes the External Components
-
Internal Soft-start Limits the Inrush Current
-
Forced PWM Operation
-
100% Dropout Operation
-
Power Good Indicator
-
Hic-cup for Short Circuit Protection
-
Output Auto Discharge Function
-
RoHS Compliant and Halogen Free
-
Compact Package: SOT563
The SY20112E is a high efficiency 1.2MHz synchronous step down DC/DC regulator, which is capable of delivering up to 3A output currents. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss.
The SY20112E is in a space saving, low profile SOT563 package.
Evaluation Board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board

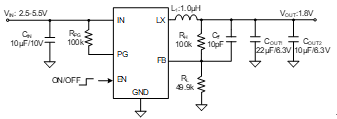

The EVB_SY20112EARC is intended for evaluating 1.2 MHz, 3A, 2.5~5.5V input, 1.8V output synchronous Buck regulator. It features enable control.
