High Efficiency, 1.5MHz, 2A Synchronous Step Down Regulator
![]()
- Parameters
- Features
- Description
| Part number | SY20114ARC |
|---|
| Channel!(#) | 1 |
|---|
| Vin (min) !(V) | 2.5 |
|---|
| Vin (max) !(V) | 5.5 |
|---|
| Switching frequency (min)!(kHz) | 1500 |
|---|
| Switching frequency (max)!(kHz) | 1500 |
|---|
| Vout (min) !(V) | 0.6 |
|---|
| Vout (max) !(V) | 5 |
|---|
| Iout (max) !(A) | 2 |
|---|
| Vout2 (min)!(V) | |
|---|
| Vout2 (max )!(V) | |
|---|
| Iout2 (max)!(A) | |
|---|
| Vref accuracy! (±%) | 1.5 |
|---|
| Vout accuracy!(±%) | |
|---|
| Control mode | COT OFF+Ipeak |
|---|
| Duty cycle (max)!(%) | 100 |
|---|
| Operation mode | Auto PFM |
|---|
| Iq (typ) !(uA) | 55 |
|---|
| Features | Power good,Output discharge |
|---|
| Package | SOT563 |
|---|
| Operating temperature range!(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
-
2.5V to 5.5V Input Voltage Range
-
55µA Low Quiescent Current
-
Low RDS(ON) for Internal Switches (Top/Bottom): 125mΩ /75mΩ
-
High Switching Frequency 1.5MHz Minimizes the External Components
-
Internal Soft-start Limits the Inrush Current
-
100% Dropout Operation
-
Power Good Indicator
-
Hic-cup for Short Circuit Protection
-
Output Auto Discharge Function
-
RoHS Compliant and Halogen Free
-
Compact Package: SOT563
The SY20114 high-efficiency 1.5MHz synchronous step-down DC/DC regulator operates over a wide input voltage range of 2.5V to 5.5V and can deliver an output current up to 2A with a low quiescent current of 55 µA. To minimize conduction loss, it integrates a main switch and a synchronous switch with very low RDS(ON).

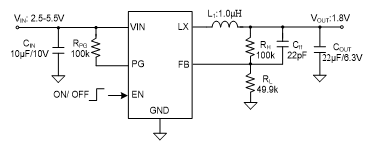

The SY20114 is highly integrated, so only the input and output capacitors, inductor, and resistor-divider components need to be selected for the targeted application specifications.
The SY20114 is available in a space-saving, low-profile SOT563 package.
Evaluation Board
Photo of evaluation board
Photo of evaluation board
The EVB_SY20114ARC is intended for evaluating 1.5 MHz, 2A, 2.5~5.5V input, 1.8V output synchronous Buck regulator. It features enable control.
