SY20117ADFC (SY8883ADFC)

Production
High Efficiency, 1MHz, 3A Synchronous Step Down Regulator
Datasheet
SY20117ADFC High Efficiency, 1MHz, 3A Synchronous Step Down Regulator Datasheet
    Part numberSY20117ADFC
    Channel(#)1
    Vin (min) (V)2.5
    Vin (max) (V)5.5
    Switching frequency (min)(kHz)1000
    Switching frequency (max)(kHz)1000
    Vout (min) (V)0.6
    Vout (max) (V)5
    Iout (max) (A)3
    Vout2 (min)(V)
    Vout2 (max )(V)
    Iout2 (max)(A)
    Vref accuracy (±%)1.5
    Vout accuracy(±%)1.5
    Control modeCOT OFF+lpeak
    Duty cycle (max)(%)
    Operation modeAuto PFM
    Iq (typ) (uA)55
    FeaturesPower Good Indicator, Hic-cup SCP, Auto Discharge
    PackageDFN2x2-8
    Operating temperature range(°C)-40°C to 125°C
    Functional safety category
    • 2.5V to 5.5V Input Voltage Range
    • 55μA Low Quiescent Current
    • Low RDS(ON) for Internal Switches (Top/Bottom): 85mΩ /60mΩ
    • High Switching Frequency 1MHz Minimizes the External Components
    • Internal Soft-start Limits the Inrush Current
    • 100% Dropout Operation
    • Power Good Indicator
    • Hic-cup for Short Circuit Protection
    • Output Auto Discharge Function
    • RoHS Compliant and Halogen Free
    • Compact Package: DFN2×2-8



    The SY8883A is a high efficiency 1MHz synchronous step down DC/DC regulator, which is capable of delivering up to 3A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

    Evaluation Board

    • 20117A-1

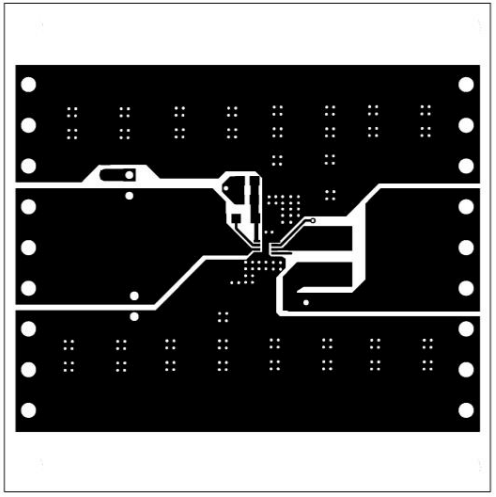

      Photo of evaluation board

    • 20117A-2

      Photo of evaluation board

    • 20117A-3

      Photo of evaluation board

    EVB_SY20117ADFC

    The EVB_SY20117ADFC is intended for evaluating 1MHz, 3A, 5.5V input synchronous Buck regulator. It features enable control.
