High Efficiency 1.5MHz, 3A Ultra Fast Dynamic Response Synchronous Step Down Regulator
![]()
- Parameters
- Features
- Description
| Part number | SY20124EQWC |
|---|
| Channel(#) | 1 |
|---|
| Vin (min) (V) | 2.7 |
|---|
| Vin (max) (V) | 5.5 |
|---|
| Switching frequency (min)(kHz) | 1500 |
|---|
| Switching frequency (max)(kHz) | 1500 |
|---|
| Vout (min) (V) | 0.6 |
|---|
| Vout (max) (V) | 5 |
|---|
| Iout (max) (A) | 3 |
|---|
| Vout2 (min)(V) | |
|---|
| Vout2 (max )(V) | |
|---|
| Iout2 (max)(A) | |
|---|
| Vref accuracy (±%) | 1 |
|---|
| Vout accuracy(±%) | |
|---|
| Control mode | COT+Ripple |
|---|
| Duty cycle (max)(%) | 100 |
|---|
| Operation mode | FCCM |
|---|
| Iq (typ) (uA) | |
|---|
| Features | Output discharge, Soft start |
|---|
| Package | QFN1.5×1.5-7 |
|---|
| Operating temperature range(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- 2.7~5.5V Input Voltage Range
- Ultra Fast Load Transient Speed
- Low RDS(ON) for Internal Switches (Top/Bottom) 85mΩ /50mΩ
- High Switching Frequency 1.5MHz Minimizes the External Components
- External Soft-start Limits the Inrush Current
- CCM Only Operation
- Reliable Short Circuit Protection: Hic-cup Mode
- Output Auto Discharge Function
- RoHS Compliant and Halogen Free
- Compact Package: QFN1.5×1.5-7

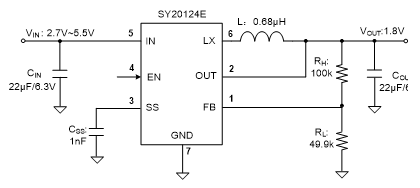

The SY20124E is a high efficiency 1.5MHz synchronous step down DC/DC regulators, which is capable of delivering up to 3A output current. The SY20124E can operate over a wide input voltage range from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
Low output voltage ripple, small external inductor and capacitor sizes are achieved with 1.5MHz switching frequency.
Evaluation Board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
EVB_ SY20124EQWC_1 is intended for evaluating 1.5MHz, 3A synchronous Buck regulator. It features Enable control.
