SY20133LDFC -

Features

·       Low RDS(ON) for Internal Switches

(top/bottom):120mΩ/90mΩ

·       2AContinuous Load Current Capability

·       2.7-5.5V Input Voltage Range

·       High Switching Frequency Minimizes the External Components: 1MHz

·       Internal Softstart Limits the Inrush Current

·       Reliable Hic-cup Mode for Hard Short Circuit Protection:

·       Reliable Non-latch off Over-voltage Protection:

·       100% Dropout Operation

·       RoHS Compliant and Halogen Free

· Compact Package: DFN2X2-8.

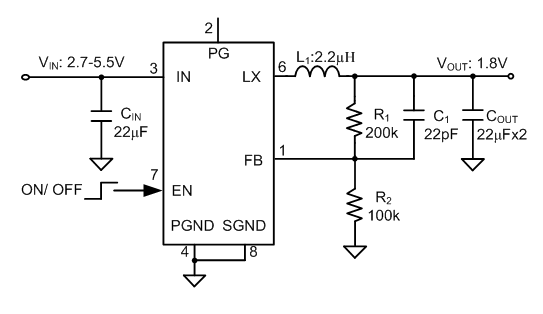

Typical Application

Description

The SY20133L is a high-efficiency, high frequency synchronous step-down DC-DC regulator IC capable of delivering up to2Aoutput current. The SY20133L operates over a wide input voltage range from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.


Low output voltage ripple and small external inductor and capacitor sizes are achieved with greater than 1MHz switching frequency.

Applications

·       LCD TV

·       Set Top Box

·       Net PC

·       Mini-Notebook PC

·       Access Point Router
