SY20159PABC -


·       Low RDS(ON) for Internal Switches


·       2.7-6.5V Input Voltage Range

·      2AContinuous Current Capability

·       1MHz Switching Frequency Minimizes the External Components

·       Internal Soft-start Limits the Inrush Current

·       100% Dropout Operation

·       RoHS Compliant and Halogen Free

·       Compact Package: SOT23-6

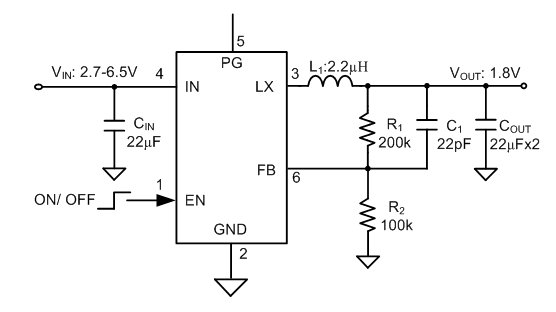

Typical Application


The SY20159P is a high efficiency, high frequency synchronous step-down DC/DC regulator capable of delivering up to 2A output current. The SY20159P operates over a wide input voltage range from 2.7V to 6.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

Low output voltage ripple and small external inductor and capacitor sizes are achieved with greater than 1MHz switching frequency.


·       LCD TV

·       Set Top Box

·       Net PC

·       Mini-Notebook PC

·       Access Point Router
