High Efficiency 1.0MHz, 3A Buck
![]()
- Parameters
- Features
- Description
| Part number |
SY20193LQWC |
| Channel(#) |
1 |
| Vin (min) (V) |
2.7 |
| Vin (max) (V) |
5.5 |
| Switching frequency (min)(kHz) |
1000 |
| Switching frequency (max)(kHz) |
1000 |
| Vout (min) (V) |
0.6 |
| Vout (max) (V) |
3.3 |
| Iout (max) (A) |
3 |
| Vout2 (min)(V) |
|
| Vout2 (max )(V) |
|
| Iout2 (max)(A) |
|
| Vref accuracy (±%) |
1 |
| Vout accuracy(±%) |
|
| Control mode |
COT+Ripple |
| Duty cycle (max)(%) |
70 |
| Operation mode |
FCCM/PFM Selectable |
| Iq (typ) (uA) |
55 |
| Features |
Power good,Output discharge, Latch-off SCP |
| Package |
QFN1.5×1.5-7 |
| Operating temperature range(°C) |
-40 to 125 |
| Functional safety category |
|
- Low RDS(ON) for Internal Switches (Top/Bottom) 85mΩ /50mΩ
- 2.7~5.5V Input Voltage Range
- 55µA Low Quiescent Current
- Ultra Fast Load Transient Speed
- High Switching Frequency 1.0MHz Minimizes the External Components
- Internal Soft-start Limits the Inrush Current
- Reliable Latch off Function When:Output Short, Thermal Shutdown, Output Voltage> 120% of Regulated Voltage
- Output Auto Discharge Function
- RoHS Compliant and Halogen Free
- Compact Package: QFN1.5×1.5-7
SY20193Lis a highefficient1.0MHz synchronous step down DC/DC regulator capable of delivering up to 3A output current. The SY20193Lcan operate over a wide input voltage range from 2.7V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
SY20193L integrates reliable latch off function when output over voltage, output short or thermal shutdown happens.
The low output voltage ripple, thesmall external inductorand the capacitor sizes are achieved with 1.0MHz switchingfrequency.
Evaluation Board
-
Photo of evaluation board
-
Photo of evaluation board
-
Photo of evaluation board

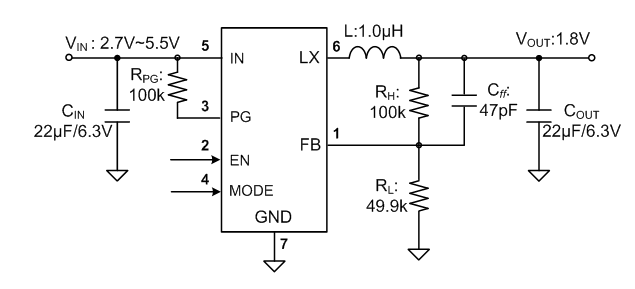

The EVB_SY20193LQWC is intended for evaluating 1.0 MHz, 3A, 2.7~5.5V input, 1.8V output synchronous Buck regulator. It features Enable control.
