SY20208ADFC (SY8018ADFC)

Production
High Efficiency, 1.5μA Ultra Low Quiescent Current, Synchronous Step Down Regulator
Datasheet
SY20208ADFC High Efficiency, 1.5μA Ultra Low Quiescent Current, Synchronous Step Down Regulator Datasheet
    Part numberSY20208ADFC
    Channel(#)
    Vin (min) (V)2.5
    Vin (max) (V)5.5
    Switching frequency (min)(kHz)
    Switching frequency (max)(kHz)
    Vout (min) (V)0.6
    Vout (max) (V)
    Iout (max) (A)0.45
    Vout2 (min)(V)
    Vout2 (max )(V)
    Iout2 (max)(A)
    Vref accuracy (±%)±2%
    Vout accuracy(±%)
    Control mode
    Duty cycle (max)(%)
    Operation mode
    Iq (typ) (uA)
    FeaturesPower Good Indicator,Auto-Discharge
    PackageDFN2x2-8
    Operating temperature range(°C)
    Functional safety category
    •        2.5~5.5V Input Voltage Range
    •        1.5μA Typical Quiescent Current
    •        Low RDS(ON) for Internal Switches (Top/Bottom) : 0.4/0.2Ω
    •        Typical 450mA Peak Current Limit
    •        Internal Soft-start Limits the Inrush Current
    •        RoHS Compliant and Halogen Free
    •        Compact Package: DFN2x2-8

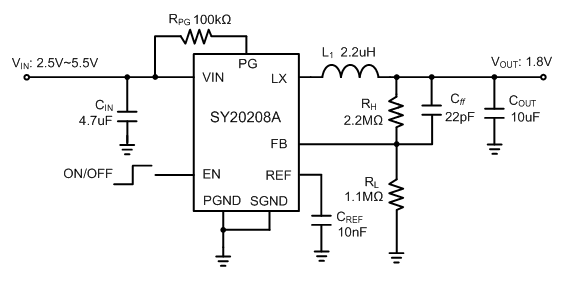

    SY20208A is a high efficiency, 1.5µA ultra low quiescent current, synchronous step down DC/DC regulator special designed for one-cell Li-Ion or Li-polymer battery powered applications. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

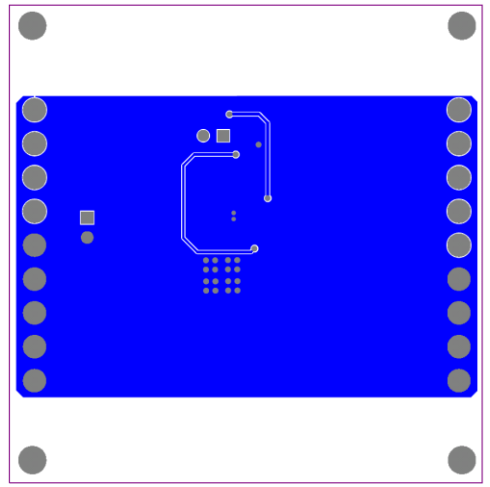

    Evaluation Board

    • 20208A-1

      Photo of evaluation board

    • 20208A-2

      Photo of evaluation board

    • 20208A-3

      Photo of evaluation board

    EVB_SY20208ADFC

    The EVB_SY20208ADFC is intended for evaluating 200mA output current, 5.5V input, 1.8V output synchronous step down DC-DC regulator.
