SY20214QDC (SY8047QDC)

Production
Ultra Low Quiescent Current 1.25MHz, 4A Synchronous Step Down Regulator
Datasheet
SY20214QDC Ultra Low Quiescent Current 1.25MHz, 4A Synchronous Step Down Regulator Datasheet
    Part numberSY20214QDC
    Channel(#)
    Vin (min) (V)2.5
    Vin (max) (V)5.5
    Switching frequency (min)(kHz)
    Switching frequency (max)(kHz)
    Vout (min) (V)0.6
    Vout (max) (V)
    Iout (max) (A)4
    Vout2 (min)(V)
    Vout2 (max )(V)
    Iout2 (max)(A)
    Vref accuracy (±%)±1.5%
    Vout accuracy(±%)
    Control mode
    Duty cycle (max)(%)
    Operation mode
    Iq (typ) (uA)
    FeaturesPower Good Indicator,Auto-Discharge,100% Dropout Operation
    PackageQFN3x3-16
    Operating temperature range(°C)
    Functional safety category
    •       Input Voltage Range: 2.5V to 5.5V
    •       1.25MHz Switching Frequency
    •       Max Output Current: 4.0A
    •       Peak Current Mode Control for the Fast Transient Speed
    •       100% Drop Out Function
    •       Typical 18µA Quiescent Current
    •       Low RDS(ON) for Internal Switches (PFET/NFET):75mΩ/55mΩ
    •       Hic-cup Mode Protection for Hard Short Condition
    •       RoHS Compliant and Halogen Free
    •       Compact Package: QFN3x3-16

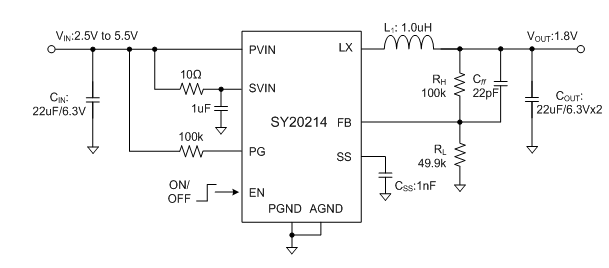

     SY20214 is a high efficiency ultra low quiescent current, 1.25MHz synchronous step-down DC/DC regulator capable of delivering up to 4A output current.

    SY20214 operates over a wide input voltage range from 2.5V to 5.5V and integrates main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss.

    Evaluation Board

    • 20214-1

      Photo of evaluation board

    • 20214-2

      Photo of evaluation board

    • 20214-3

      Photo of evaluation board

    EVB_SY20214QDC

    The EVB_SY20214QDC is to facilitate the evaluation of SY20214QDC, 5.5V, 4A, 1.25MHz synchronous Buck regulator.
