SY20228DFC (SY8816DFC)

Production
High Efficiency 6V, 6A, 1.2MHz Synchronous Step Down Regulator
Datasheet
SY20228DFC High Efficiency 6V, 6A, 1.2MHz Synchronous Step Down Regulator Datasheet
    Part numberSY20228DFC
    Channel!(#)1
    Vin (min) !(V)2.75
    Vin (max) !(V)6
    Switching frequency (min)!(kHz)1200
    Switching frequency (max)!(kHz)1200
    Vout (min) !(V)0.6
    Vout (max) !(V)5
    Iout (max) !(A)6
    Vout2 (min)!(V)
    Vout2 (max )!(V)
    Iout2 (max)!(A)
    Vref accuracy! (±%)1.5
    Vout accuracy!(±%)
    Control modeClock+Ipeak
    Duty cycle (max)!(%)100
    Operation modeAuto PFM
    Iq (typ) !(uA)60
    FeaturesPower good, Output discharge
    PackageDFN2×2-8
    Operating temperature range!(°C)-40 to 125
    Functional safety category
    • Low RDS(ON) for Internal Switches (Top/Bottom): 35/15 mΩ
    • 2.75-6V Input Voltage Range
    •  1.2 MHz Switching Frequency Minimizes the External Components
    • Internal Soft-start Limits the Inrush Current
    • Up to 94% Efficiency
    • 6A Continuous Output Current Capability
    •  Shutdown Mode Draws<0.1µA Supply Current
    • 100% Dropout Operation
    •  Power Good Indicator
    • OCP/UVLO/OTP Protections
    • RoHS Compliant and Halogen Free
    • Compact Package: DFN2x2-8

    SY20228 is a high efficiency high frequency synchronous step down DC/DC regulator capable of delivering up to 6A output current. It operates over a wide input voltage range from 2.75V to 6V. It integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. High integrated solution and DFN2x2-8 package perform the optimized BOM cost and reduce external component part count. Low input and output voltage ripple, small external inductor and capacitor sizes, small PCB layout space are achieved.

    Evaluation Board

    • 20228-1

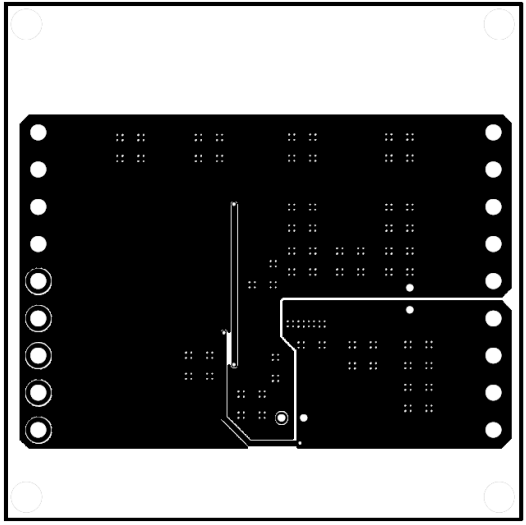

      Photo of evaluation board

    • 20228-2

      Photo of evaluation board

    • 20228-3

      Photo of evaluation board

    • 20228-4

      Photo of evaluation board

    • 20228-5

      Photo of evaluation board

    EVB_SY20228DFC

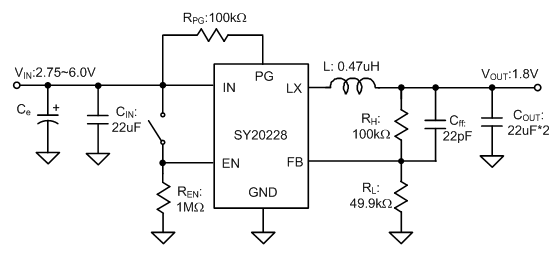

    The EVB_SY20228DFC is intended for 1.2MHz, 6A, 2.75~6V input, 1.8V output synchronous step-down DC/DC regulator.
