High Efficiency 1.2MHz, 6A, 6.5V Synchronous Step Down Regulator
![]()
- Parameters
- Features
- Description
| Part number | SY20246DFC |
|---|
| Channel!(#) | 1 |
|---|
| Vin (min) !(V) | 2.7 |
|---|
| Vin (max) !(V) | 6.5 |
|---|
| Switching frequency (min)!(kHz) | 1200 |
|---|
| Switching frequency (max)!(kHz) | 1200 |
|---|
| Vout (min) !(V) | 0.6 |
|---|
| Vout (max) !(V) | 5 |
|---|
| Iout (max) !(A) | 6 |
|---|
| Vout2 (min)!(V) | |
|---|
| Vout2 (max )!(V) | |
|---|
| Iout2 (max)!(A) | |
|---|
| Vref accuracy! (±%) | 1.5 |
|---|
| Vout accuracy!(±%) | |
|---|
| Control mode | Clock+Ipeak |
|---|
| Duty cycle (max)!(%) | 100 |
|---|
| Operation mode | Auto PFM |
|---|
| Iq (typ) !(uA) | 60 |
|---|
| Features | Power good, Output discharge |
|---|
| Package | DFN2×2-8 |
|---|
| Operating temperature range!(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- Low RDS(ON) for Internal Switches (Top/Bottom): 38/15 mΩ
- 2.7-6.5V Input Voltage Range
- 1.2 MHz Switching Frequency Minimizes the External Components
- Internal Soft-start Limits the Inrush Current
- Up to 94% Efficiency
- 6A Continuous Output Current Capability
- Shutdown Mode Draws<0.1µA Supply Current
- 100% Dropout Operation
- Power Good Indicator
- OCP/UVLO/OTP Protections
- RoHS Compliant and Halogen Free
- Compact Package: DFN2×2-8
The SY20246 is a high efficiency 1.2MHz synchronous step down DC/DC regulator capable of delivering up to 6A output current. It operates over a wide input voltage range from 2.7V to 6.5V. It integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. High integrated solution and DFN2×2-8 package perform the optimized BOM cost and reduce external component part count. Low input and output voltage ripple, small external inductor and capacitor sizes, small PCB layout space are achieved.
Evaluation Board

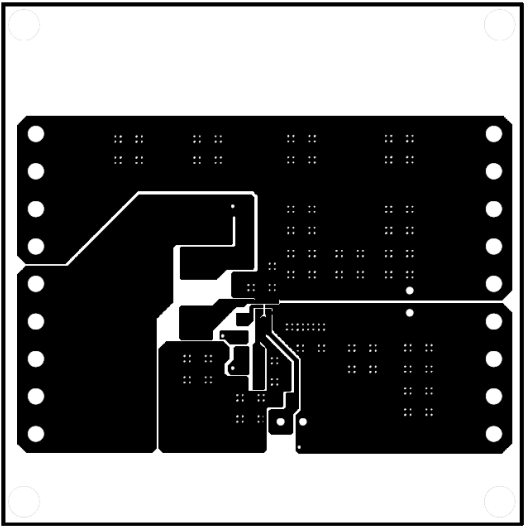

Photo of evaluation board

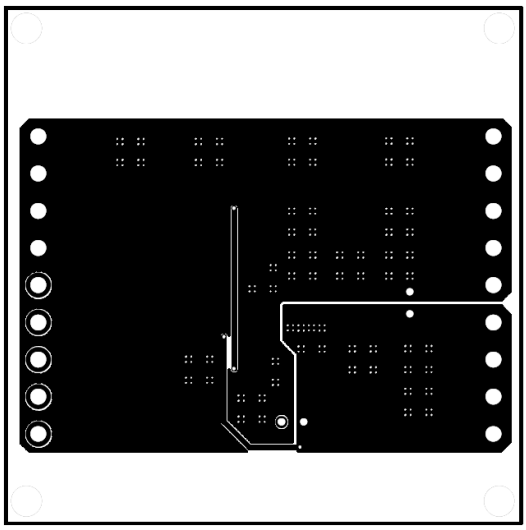

Photo of evaluation board

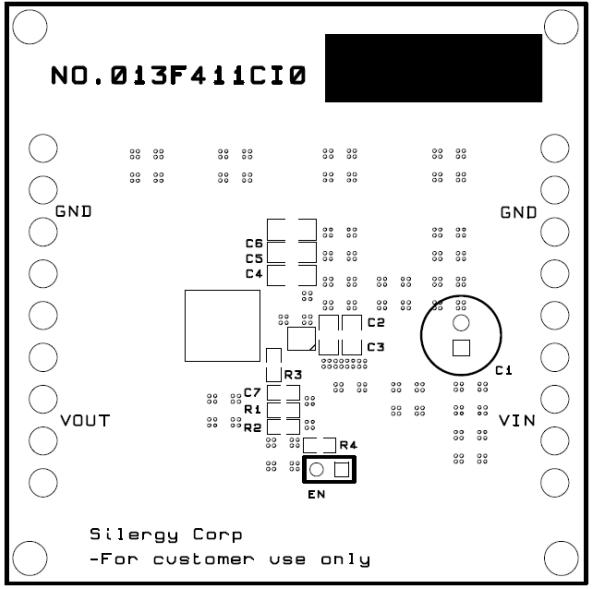

Photo of evaluation board

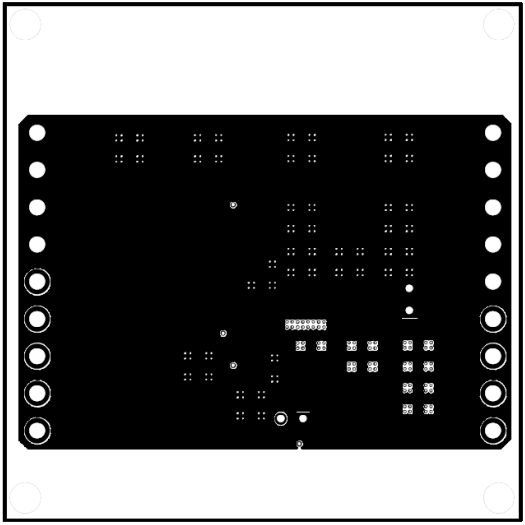

Photo of evaluation board

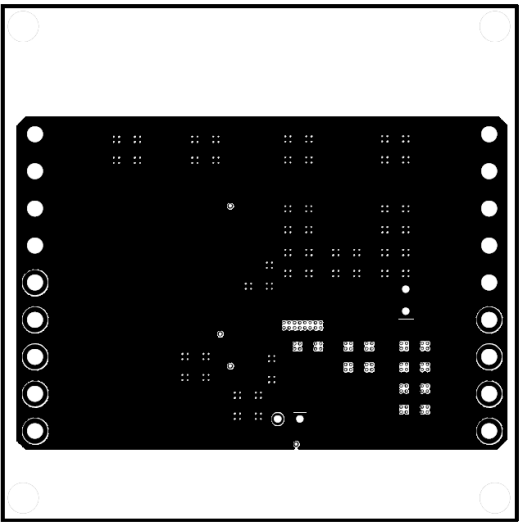

Photo of evaluation board

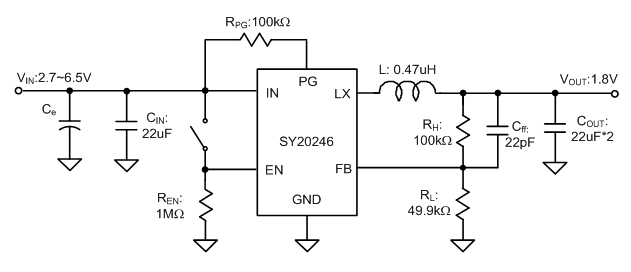

The EVB_SY20246DFC is intended for 1.2MHz, 6A, 2.7~6.5V input, 1.8V output synchronous step-down DC/DC regulator.
