SY20277QQC (SY8810QQC)

Production
12A, 1.5MHz, I2C Programmable, with VOUT Remote Sense Buck
Datasheet
SY20277QQC 12A, 1.5MHz, I2C Programmable, with VOUT Remote Sense Buck Datasheet
    Part numberSY20277QQC
    Channel!(#)1
    Vin (min) !(V)2.7
    Vin (max) !(V)5.5
    Switching frequency (min)!(kHz)1500
    Switching frequency (max)!(kHz)1500
    Vout (min) !(V)0.6
    Vout (max) !(V)1.5
    Iout (max) !(A)12
    Vout2 (min)!(V)
    Vout2 (max )!(V)
    Iout2 (max)!(A)
    Vref accuracy! (±%)
    Vout accuracy!(±%)1
    Control modeCOT+Ripple
    Duty cycle (max)!(%)70
    Operation modeAuto PFM
    Iq (typ) !(uA)95
    FeaturesOutput discharge, I2C
    PackageQFN3×3-12
    Operating temperature range!(°C)-40 to 125
    Functional safety category
    • 2.7V to 5.5V Input Voltage Range
    • Pseudo-constant Frequency: 1.5MHz
    • Low RDS(ON) for Internal Switches (Top/Bottom): 12mΩ/6mΩ
    • Programmable Output Voltage: 0.6V to 1.5V in 10mV Steps
    • 12A Continuous, 15A Peak Load Current Capability
    • Capable for 0.25µH Inductor and 2×22µF Ceramic Capacitor
    • PFM/PWM Operation for Optimum Increased Efficiency
    • Remote Sensing at Point of Load Side
    • 2 Different I2C Address Selectable
    • I2C Interface Support 100kHz Standard Mode and 400kHz Fast Mode
    • Thermal Shutdown with Auto Recovery
    • Compact Package: QFN3×3-12

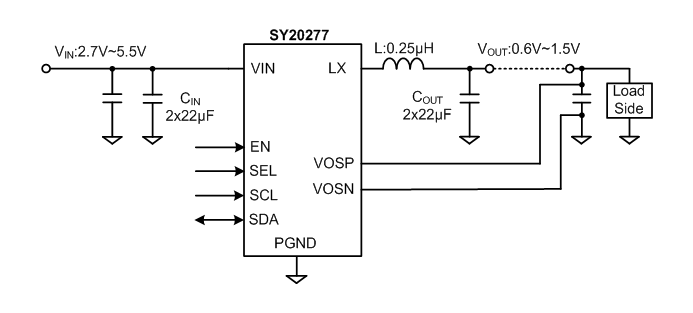

     SY20277 is a high efficiency 1.5MHz synchronous step down DC/DC regulator capable of delivering up to 12A output currents. It can operate over a wide input voltage range from 2.7V to 5.5V and integrates main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. The output voltage can be programmed from 0.6V to 1.5V through I2C interface.

    SY20277 is in a space saving, low profile QFN3x3-12 package.

    Evaluation Board

    • 20277-1

      Photo of evaluation board

    • 20277-2

      Photo of evaluation board

    • 20277-3

      Photo of evaluation board

    • 20277-4

      Photo of evaluation board

    • 20277-5

      Photo of evaluation board

    EVB_SY20277QQC

    The EVB_SY20277QQC is to facilitate the evaluation of SY20277QQC, 5.5V, 12A, 1.5MHz synchronous Buck regulator.

    Technical Documentation
