SY20321AIC (SY8832AIC)

Production
High Efficiency 2MHz, Dual 2A Synchronous Step Down Regulator
Datasheet
SY20321AIC High Efficiency 2MHz, Dual 2A Synchronous Step Down Regulator Datasheet
    Part numberSY20321AIC
    Channel(#)2
    Vin (min) (V)2.5
    Vin (max) (V)5.5
    Switching frequency (min)(kHz)2000
    Switching frequency (max)(kHz)2000
    Vout (min) (V)0.6
    Vout (max) (V)5
    Iout (max) (A)2
    Vout2 (min)(V)0.6
    Vout2 (max )(V)5
    Iout2 (max)(A)2
    Vref accuracy (±%)2
    Vout accuracy(±%)
    Control modeClock+Ipeak
    Duty cycle (max)(%)100
    Operation modeAuto PFM
    Iq (typ) (uA)45
    FeaturesInterleave operation
    PackageTSOT23-8
    Operating temperature range(°C)-40 to 125
    Functional safety category



    • 2.5V to 5.5V Input Voltage
    • 2MHz Switching Frequency
    • 180° Out of Phase Operation
    • Output Current: 2A per Channel
    • Low Quiescent Current: <45µA for Both Channels
    • Low RDS(ON) for Internal Switches (PFET/NFET):  125mΩ/100mΩ
    • Internal Soft-start
    • 100% Dropout Operation
    • RoHS Compliant and Halogen Free
    • Compact Package: TSOT23-8



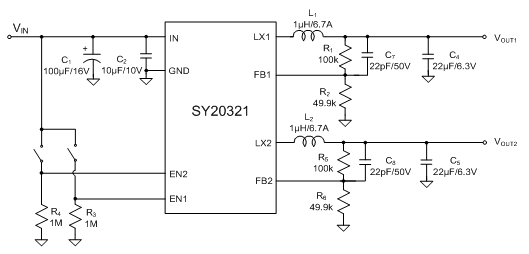

    The SY20321 is a dual output, high efficiency 2MHz synchronous step down DC/DC regulator capable of delivering up to 2A output current for each output channel. The SY20321 operates over a wide input voltage range from 2.5V to 5.5V and integrates a main switch and a synchronous switch with very low RDS(ON) to minimize the conduction loss.

    Evaluation Board

    • 20321-1

      Photo of evaluation board

    • 20321-2

      Photo of evaluation board

    • 20321-3

      Photo of evaluation board

    • 20321-4

      Photo of evaluation board

    • 20321-5

      Photo of evaluation board

    EVB_SY20321AIC

    The EVB_SY20321AIC is intended for evaluating 2MHz, Dual 2A synchronous Buck regulator. It features Enable controls.
