SY20341BSAC (SY8821BSAC)

Production
High Efficiency 2MHz, Dual 1.0A Synchronous Step Down Regulator
Datasheet
SY20341BSAC High Efficiency 2MHz, Dual 1.0A Synchronous Step Down Regulator Datasheet
    Part numberSY20341BSAC
    Channel!(#)2
    Vin (min) !(V)2.3
    Vin (max) !(V)5.5
    Switching frequency (min)!(kHz)2000
    Switching frequency (max)!(kHz)2000
    Vout (min) !(V)0.6
    Vout (max) !(V)5
    Iout (max) !(A)1
    Vout2 (min)!(V)0.6
    Vout2 (max )!(V)5
    Iout2 (max)!(A)1
    Vref accuracy! (±%)2
    Vout accuracy!(±%)
    Control modeClock+Ipeak
    Duty cycle (max)!(%)100
    Operation modeAuto PFM
    Iq (typ) !(uA)45
    FeaturesInterleave operation
    PackageDFN2×1.5-8
    Operating temperature range!(°C)-40 to 125
    Functional safety category
    • 2.3V to 5.5V Input Voltage
    • 2MHz Switching Frequency
    • 180° Out of Phase Operation
    • Output Current: 1.0A for Each Channel
    • Low Quiescent Current: Typical 45µA for Both Channels
    • Low RDS(ON) for Internal Switches

          (PFET/NFET):  125mΩ/100mΩ

    • Internal Soft-start
    • 100% Dropout Operation
    • RoHS Compliant and Halogen Free
    • Compact Package: DFN2x1.5-8

    The SY20341B is a dual output, high efficiency 2MHz synchronous step down DC/DC regulator capable of delivering up to 1.0A for each output channel. The SY20341B operates over a wide input voltage range from 2.3V to 5.5V and integrates a main switch and a synchronous switch with very low RDS(ON) to minimize the conduction loss.

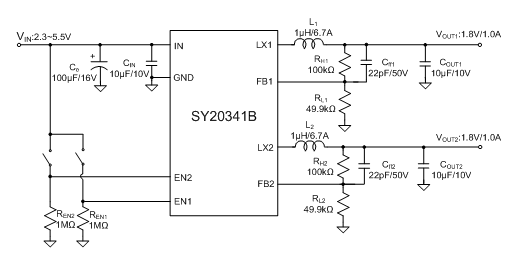

    Evaluation Board

    • 20341B-1

      Photo of evaluation board

    • 20341B-2

      Photo of evaluation board

    • 20341B-3

      Photo of evaluation board

    EVB_SY20341BSAC

    The EVB_SY20341BSAC is intended for evaluating 2MHz, Dual 1.0A, synchronous Buck regulator. It features Enable controls.
