SY20508DGC

Production
2.3V Minimum Input and 5.5V Maximum Output 3A Peak Current Synchronous Boost with Output Disconnect
Datasheet
SY20508DGC 2.3V Minimum Input and 5.5V Maximum Output 3A Peak Current Synchronous Boost with Output Disconnect Datasheet
    Part NumberSY20508DGC
    Vin_min (V)2.3
    Vin_max (V)5.25
    Limit Current (A)6
    Fsw (MHz)0.5
    Vo_max (V)5.5
    Vref Accuracy±1.5%
    Rdson120
    Rdson240
    Features / Special FunctionDisconnect @Shutdown
    PackageQFN2x3-8



    • 2.3-5.0V Input Voltage Range
    • Adjustable Output Voltage from 2.5V to 5.5V
    • Pseudo-constant Frequency: 1MHz
    • 3A Peak Current Limit
    • Input Under Voltage Lockout
    • Load Disconnect During Shutdown
    • Output Over Voltage Protection
    • Low RDS(ON) (Main Switch/Synchronous Switch) at 5.0V Output: 70/85mΩ
    • Compact Package: DFN2×3-8



    Evaluation Board

    • SY20508DGC-b

      Photo of evaluation board

    • SY20508DGC-a

      Photo of evaluation board

    • SY20508DGC-c

      Photo of evaluation board

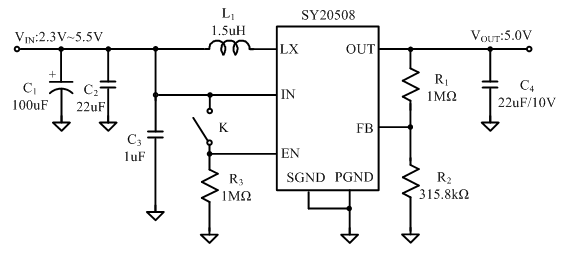

    EVB_SY20508DGC

    The EVB_SY20508DGC is intended for evaluating a high efficiency synchronous boost regulator SY20508. It can disconnect the output during the shutdown operation.
