SY20652QNC (SQ76202QNC)

Production
High Efficiency, Built-in Inductor, 1.7MHz, 2A, 23V Input Synchronous Step Down Regulator
Datasheet
SY20652QNC High Efficiency, Built-in Inductor, 1.7MHz, 2A, 23V Input Synchronous Step Down Regulator Datasheet
    Part numberSY20652QNC
    TopologyBuck
    Vin (min) (V)4.5
    Vin (max) (V)23
    Iout (max) (A)2
    Vout (min) (V)0.6
    Vout (max) (V)IN*Dmax
    Default Vout (V)Adjustable
    PackageQFN3×3-10
    Height(mm)2.1
    Fsw(MHz)1.7
    Vref accuracy (±%)±1.5
    with I2CNo
    with PGYes
    Soft startExternal
    FeaturesPFM
    MSL3

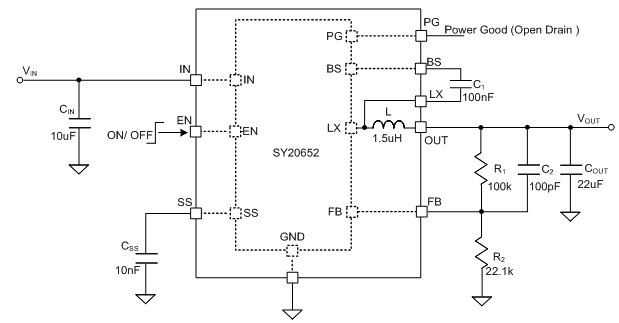

    • low RDS(ON) for Internal Switches (Top/Bottom): 105mΩ/50mΩ
    • 4.5-23V Input Voltage Range
    • 2A Output Current Capability
    • 1.7MHz Switching Frequency
    • Instant PWM Architecture to Achieve Fast Transient Responses
    • Cycle-by-cycle Peak Current Limitation
    • Adjustable soft-start Time
    • Hic-cup Mode Output Short Circuit Protection
    • ±1.5% 0.6V Reference
    • Power Good Indicator
    • QFN3×3-10 Package

    Evaluation Board

    • 1

      Photo of evaluation board

    • 2

      Photo of evaluation board

    • 3

      Photo of evaluation board

    EVB_SY20652QNC

    The EVB_SY20652QNC is used to evaluate High Efficiency, Built-in Inductor, 2MHz, 2A, 23V Input Synchronous Step Down Regulator SY20652QNC.
