High Efficiency Bi-direction Power Bank Regulator for Single-cell Battery Power Bank
- Parameters
- Features
- Description
| Part Number | SY20718EQDC |
|---|
| Description | |
|---|
| Vin_min (V) | 4.7 |
|---|
| Vin_max (V) | 5.5 |
|---|
| Vo_min (V) | |
|---|
| Max. Charge Current (A) | 2.5 |
|---|
| Iq (uA) | |
|---|
| Fsw (MHz) | 0.5 |
|---|
| Cell Voltage | 4.25V,4.4V |
|---|
| Series Cells | 1 |
|---|
| Features / Special Function | Prog. Current Limit, 2.5A Boost |
|---|
| Package | QFN3x3-16 |
|---|
- Maximum 18V Input Voltage Surge
- Bad Adapter Detection
- Build in Power Path NFETs and Power Switches
- 500kHz Switching Frequency Operation
- Trickle Current / Constant Current / Constant Voltage Charge Mode with Internal Compensation
- Maximum 2A Constant Charge Current
- Maximum 2.5A Boost Output Current
- 4.25V/4.4V Selectable Battery Cell Voltage
- +/-0.5% Cell Voltage Accuracy
- Charge/Discharge/Fault Status Indicator
- Discharging Control Logic
- Programmable Input Current Limit
- Dynamic Power Management
- Cycle-by-cycle Peak Current Limitation
- Input Voltage UVLO and OVP
- Boost Output Short Circuit Protection
- Thermal Shutdown

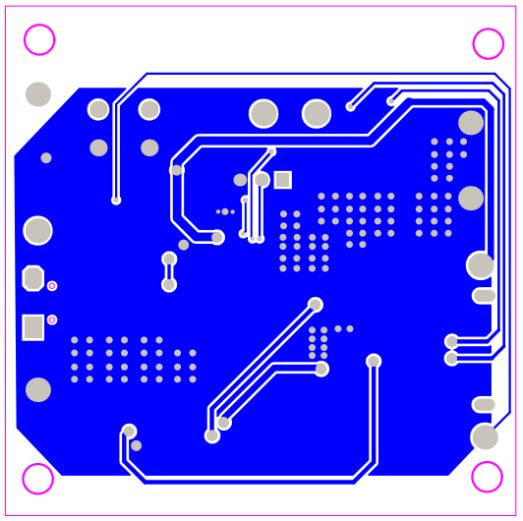

Evaluation Board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
The EVB_SY20718E is used to evaluate 5V adapter input with up to 18V surge bi-directional regulator SY20718E.
