High Efficiency Bi-direction Power Bank Regulator
for Single-cell Battery Power Bank
- Parameters
- Features
- Description
| Part number | SY20718GQDC |
|---|
| Vin (max) (V) | 5.35 |
|---|
| Vin (min) (V) | 4.5 |
|---|
| Absolute max Vin (max) (V) | |
|---|
| Number of series cells | Single Cell |
|---|
| Charge voltage (max) (V) | |
|---|
| Charge voltage (min) (V) | |
|---|
| Charge current (max) (A) | 2.5 |
|---|
| Charge current (min) (A) | |
|---|
| Integrated FETs(Yes/No) | |
|---|
| Topology | |
|---|
| Control interface | |
|---|
| Features | Prog. Current Limit, 4.75V Boost |
|---|
| Operating temperature range(°C) | |
|---|
| Package | QFN3x3-16 |
|---|
- Maximum 18V Input Voltage Surge
- Bad Adapter Detection
- Build in Power Path NFETs and Power Switches
- 500kHz Switching Frequency Operation
- Trickle Current / Constant Current / Constant Voltage Charge Mode with Internal Compensation
- Maximum 2A Constant Charge Current
- Maximum 2.5A Boost Output Current
- 4.2V/4.35V Selectable Battery Cell Voltage
- +/-0.5% Cell Voltage Accuracy
- Charge/Discharge/Fault Status Indicator
- Discharging Control Logic
- Programmable Input Current Limit
- Dynamic Power Management
- Cycle-by-cycle Peak Current Limitation
- Input Voltage UVLO and OVP
- Boost Output Short Circuit Protection
- Thermal Shutdown
Evaluation Board

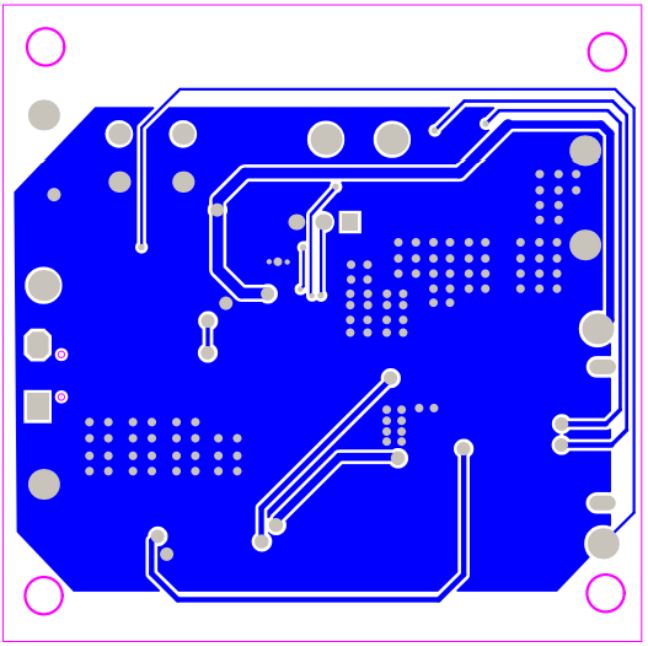

Photo of evaluation board

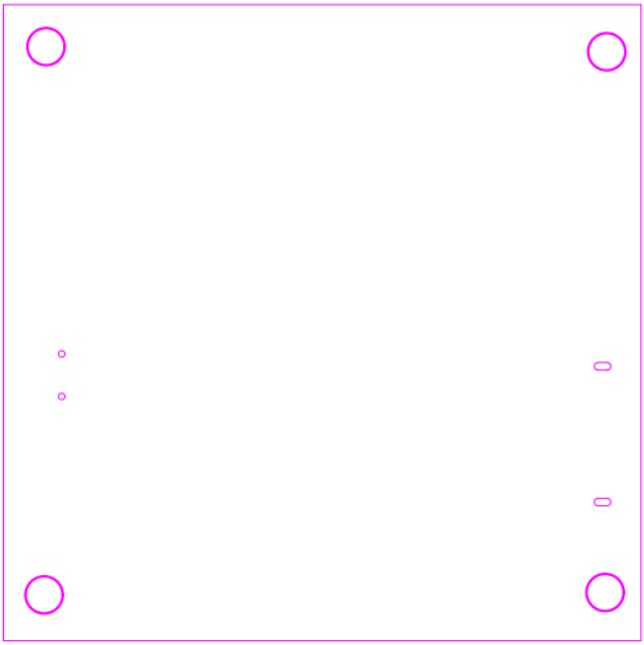

Photo of evaluation board

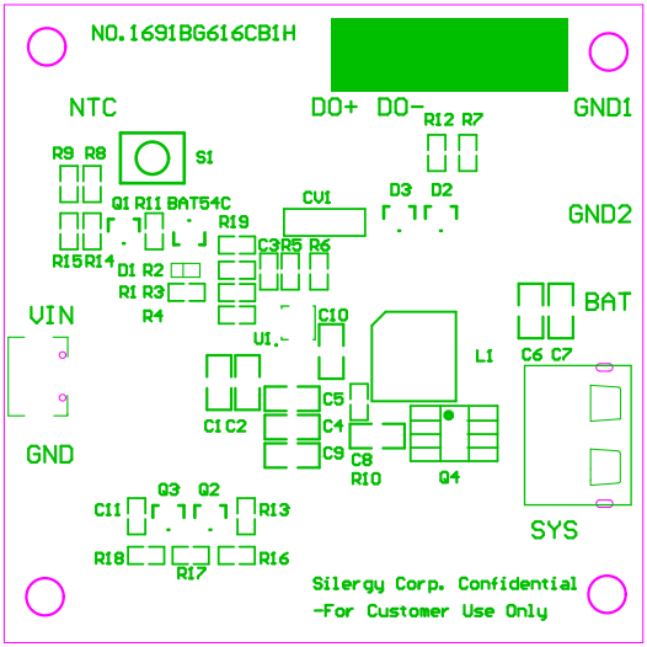

Photo of evaluation board

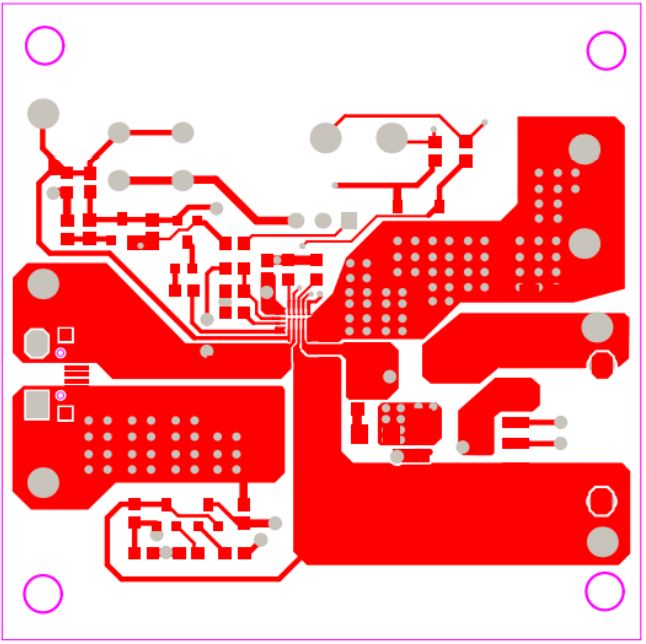

Photo of evaluation board
The EVB_SY20718GQDC is used to evaluate 5V adapter input with up to 18V surge bi-directional regulator SY20718GQDC.
