SY20733BSCC (SY6307BSCC)

Production
500mA Low Dropout Bias Rail LDO Regulator
Datasheet
SY20733BSCC 500mA Low Dropout Bias Rail LDO Regulator Datasheet
    Part numberSY20733BSCC
    Vin (max) !(V)5.5
    Vin (min) !(V)0.8
    Iout (max) !(A)0.5
    Output typeAdjustable
    Vout (max) !(V)Bias-0.4
    Vout (min) !(V)0.8
    Iq (typ) !(uA)110
    PSRR at 100kHz !(dB)40
    Accuracy !(±%)1
    FeaturesEnable,Auto-discharge,Over current protection,Thermal shutdown
    Operating temperature range!(°C)-40 to 125
    PackageDFN1.2×1.2-6
    Functional safety category
    • Input Voltage Range: 0.8V-5.5V
    • Bias Voltage Range: 2.4V-5.5V
    • Output Voltage Accuracy: ±1%
    • Bias Input Quiescent Current: 110µA (typ.)
    • Bias Shutdown current: 0.1µA (typ.)
    • Up to 500mA Output Current
    • Current Limit Protection
    • Over Temperature Shutdown
    • Output Auto-Discharge Resistor: 130Ω
    • RoHS Compliant and Halogen Free
    • Compact Package: DFN1.2×1.2-6

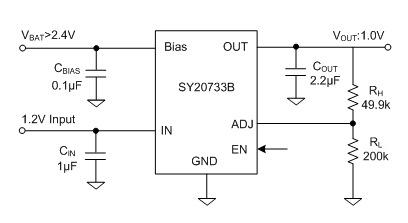

    The SY20733B is a low-voltage, low-dropout voltage regulator capable of sourcing 500mA with a built-in negative metal-oxide-semiconductor (NMOS). A separate bias rail is provided to enable an input voltage range of 0.8V to 5.5V. The output voltage can be configured using a resistor divider and provides a voltage accuracy of ±1%.

    The SY20733B is available in a compact DFN1.2mm×1.2mm-6 pin package.

    Evaluation Board

    • 20733B-

      Photo of evaluation board

    • 20733B-2

      Photo of evaluation board

    • 20733B -3

      Photo of evaluation board

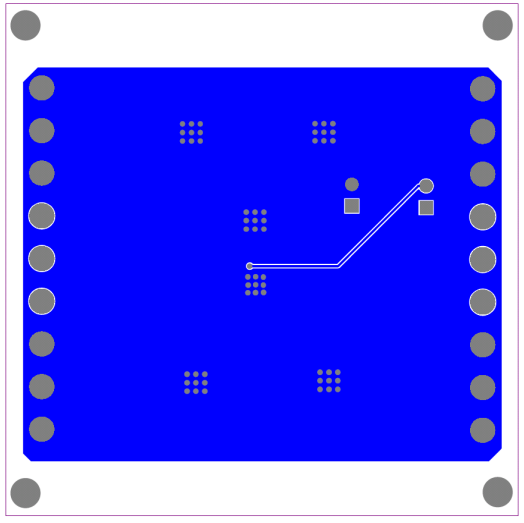

    EVB_SY20733BSCC

    The EVB_SY20733BSCC is intended for evaluating 500mA Low Dropout Bias Rail LDO Regulator.
