SY20752BFCC

Production
2A Single-Cell High Efficiency Switching Charger with Adaptive Input Current Limit
Datasheet
SY20752BFCC 2A Single-Cell High Efficiency Switching Charger with Adaptive Input Current Limit Datasheet
    Part NumberSY20752BFCC
    Description
    Vin_min (V)4
    Vin_max (V)23
    Vo_min (V)
    Max. Charge Current (A)2
    Iq (uA)
    Fsw (MHz)0.8
    Cell Voltage4.2V,4.35V
    Series Cells1
    Features / Special Function
    PackageSO8E

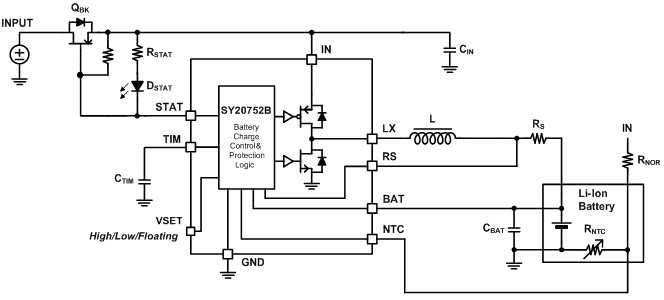

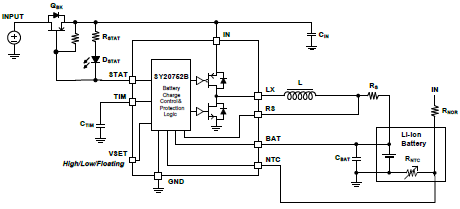

    • Wide Input Voltage Range: 4.0V to 23V
    • High Efficiency Int. Synchronous Buck Regulator with Fixed 800kHz Switching Frequency
    • Trickle Current / Constant Current / Constant Voltage Charge Mode
    • Adaptive input current limit
    • Programmable Charging Timeout
    • 4.35 and 4.2V selectable cell voltage
    • Programmable (2A MAX) Constant Charge Current
    • Input Voltage UVLO and Battery OVP
    • Over Temperature Protection
    • Output Short Circuit Protection
    • Charge Status Indication
    • Normal Synchronous Buck Operation when Battery Removed
    • Compact package SO8E


    Evaluation Board

    • 20752B

      Photo of evaluation board

    • 20752B-

      Photo of evaluation board

    • 20752B--

      Photo of evaluation board

    EVB_SY20752BFCC

    The EVB_SY20752BFCC is used to evaluate 4.0-23V input, 2A single-cell synchronous buck Li-Ion battery charger SY20752BFCC.

    Technical Documentation

    Similar Products

    SY20762FQDC
    High Efficiency, 2A, Two-Cell Boost Li-Ion Battery Charger
    SY20783QIC
    High Efficiency, 2-4 cells Buck Li-Ion Battery Charger
