SY20761QDC - High Efficiency, 1.2A Two-cell Boost Li-Ion Battery Charger

Features


  • Low Profile QFN3×3 Package
  • Integrated Synchronous Boost with 18V Rating Low RDSON FETs for High Charge Efficiency
  • Trickle Current / Constant Current / Constant Voltage Charge Mode
  • Programmable Input Voltage Threshold for Adaptive Current Limit.
  • Maximum 1.2A Constant Charge Current
  • Charge Current Information Indication.
  • Programmable Charge Timeout
  • Programmable Constant Charge Current
  • Selectable Constant Voltage
  • ±0.5% Battery Voltage Accuracy
  • Thermal Regulation Protection
  • External Shutdown Function
  • Input Voltage UVLO and OVP
  • Over Temperature Protection
  • Output Short Circuit Protection
  • Charge Status Indication
  • Normal Synchronous Boost Operation When the Battery is Removed

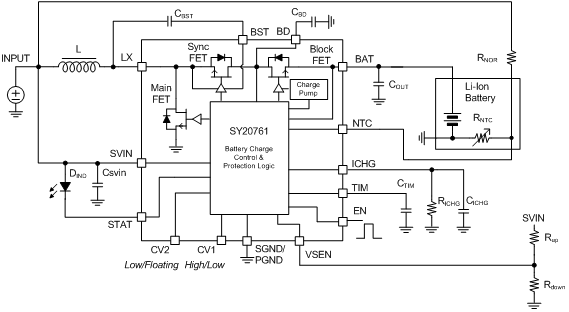

Typical Application

Description

SY20761 is a 3.6-5.5VIN, 1.2A two-cell synchronous Boost Li-Ion battery charger which integrates 1MHz switching frequency and full protection functions. The charge current up to 1.2A can be programmed by using the external resistor for different portable applications and indicates the charger current information simultaneously. It also has a programmable charge timeout for safety battery charge operation and a programmable input voltage threshold for adaptive input current limit. SY20761 can disconnect output when there is an output short circuit or shutdown. It consists of 18V rating FETs with extremely low on resistance to achieve high charge efficiency and simple peripheral circuit design.


SY20761 along with small QFN3×3 footprint provides small PCB area application.

Applications

  • Cellular Telephones, PDA, MP3 Players, MP4 Players
  • Digital Cameras
  • Bluetooth Applications
  • PSP Game Players, NDS Game Players
  • Notebook
