SY20802UGC (SY6886UGC)

Production
Over Voltage Protection Switch with Current Monitor
Datasheet
SY20802UGC Over Voltage Protection Switch with Current Monitor Datasheet
    Part numberSY20802UGC
    Channel(#)1
    Vin (min) (V)3
    Vin (max) (V)18
    Iout (max) (A)3
    Iq (typ) (uA)85
    Protection modeAuto-recovery OVP
    Ron (typ) (mΩ)45
    Soft startFixed
    Output dischargeNO
    Enable logicHigh
    Certification recognition
    FeaturesReverse blocking
    PackageCSP1.50×1.64-12
    Operating temperature range(°C)-40 to 125
    Functional safety category

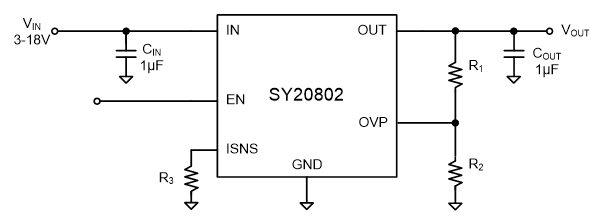

    • Wide Input Voltage Range from 3V to 18V
    • Up to 25V Voltage Rating for OUT Pin
    • Extremely Low on Resistance RDS(ON)

    RDS(ON)=45mΩ(typ.) at 12V VIN condition

    • Reverse Blocking Function
    • 3A Output Current Capability
    • Programmable Current Limit
    • Short-circuit Protection
    • Thermal Shutdown Protection & Auto Recovery
    • RoHS Compliant and Halogen Free
    • Compact Package: CSP1.50mm×1.64mm -12



    Evaluation Board

    • 20802-9

      Photo of evaluation board

    • 20802-8

      Photo of evaluation board

    • 20802-7

      Photo of evaluation board

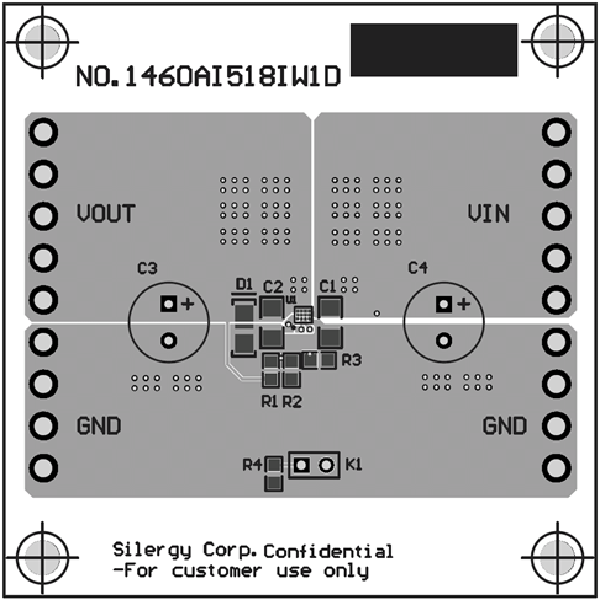

    EVB_SY20802UGC

    The EVB_SY20802UGC is used to evaluate an over voltage protection switch with 3A capability to prevent damage to the upstream system with low voltage rating.

    Technical Documentation

    TitleDate
    Silergy_Catalog_Q2_20262026-06-12
    CSP1.50x1.64-122021-12-10
