SY20803ADRC (SY6283ADRC)

Production
Low Loss Power Distribution Load Switch
Datasheet
SY20803ADRC Low Loss Power Distribution Load Switch Datasheet
    Part numberSY20803ADRC
    Channel(#)1
    Vin (min) (V)2.5
    Vin (max) (V)5.5
    Iout (max) (A)3
    Iq (typ) (uA)32
    Protection modeAuto-recovery OCP,Auto-recovery OTP
    Current limit (A)Adjustable
    Ron (typ) (mΩ)60
    Enable logicHigh
    Output dischargeYES
    Certification recognition
    FeaturesReverse blocking
    PackageDFN1.2×1.6-4
    Operating temperature range(°C)-40 to 125
    Functional safety category
    • Distribution Voltages: 2.5V to 5.5V
    • Over Temperature Shutdown and Automatic Retry
    • Reverse Blocking (No Body Diode)
    • At shutdown, OUT Can Be Forced Higher than IN
    • Built-in Soft-start
    • Output Discharge Function
    • Auto Output Discharge Function
    • RoHS Compliant and Halogen Free
    • Compact Packages Minimize Board Space: DFN1.2x1.6-4



    Evaluation Board

    • 6283-9

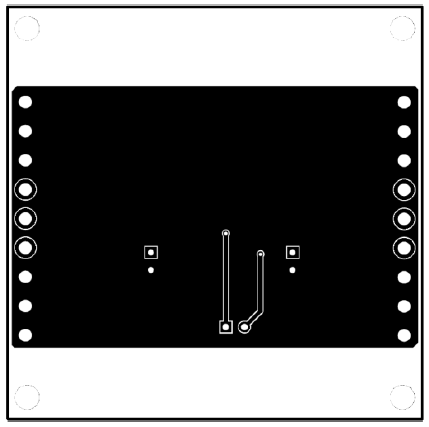

      Photo of evaluation board

    • 6283-8

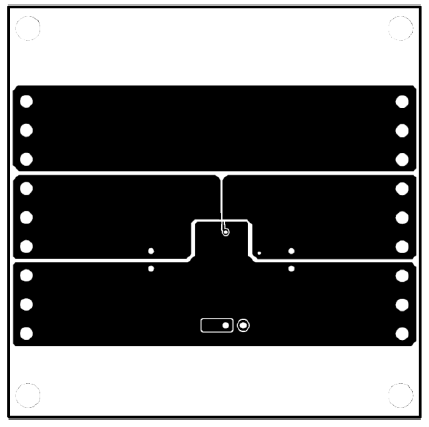

      Photo of evaluation board

    • 6283-7

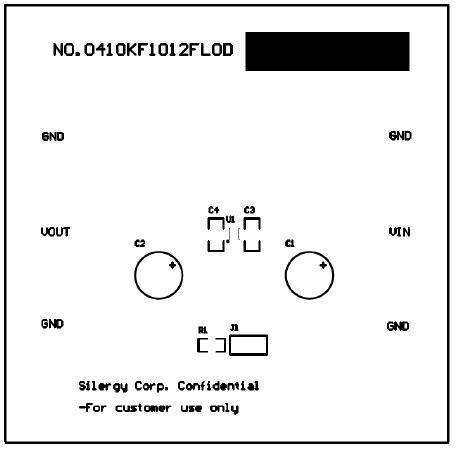

      Photo of evaluation board

    EVB_SY20803ADRC

    The EVB_SY20803ADRC is used to evaluate is an ultra-low RDS(ON) switch with current limiting function to protect the power source from over current and short circuit conditions.
