3A Low Loss Power Distribution Switch

Datasheet
SY20808F3ABC 3A Low Loss Power Distribution Switch Datasheet
    Part NumberSY20808F3ABC
    Vin_min (V)2.5
    Vin_max (V)5.5
    Io_max (A)0~3
    Rdson145
    Channels1
    EnableActive High
    Protection Mode
    Features / Special FunctionProgrammable Current Limit, Reverse Blocking
    PackageSOT23-6
    • Input Voltage: 2.5V to 5.5V
    • Extremely Low Power Path Resistance: 45mΩ (typ.)
    • 3A Load Current Capability
    • Over Temperature Shutdown and Automatic Retry
    • Reverse Blocking (no Body Diode)
    • Fault Flag (OCB) Output for over Current and Fault Conditions
    • Programmable Current Limitation
    • At shutdown, OUT Can Be Forced Higher Than IN
    • Built-in Soft-start
    • Compact Package Minimizes the Board Space: SOT23-6
    • RoHS Compliant and Halogen Free

    Evaluation Board

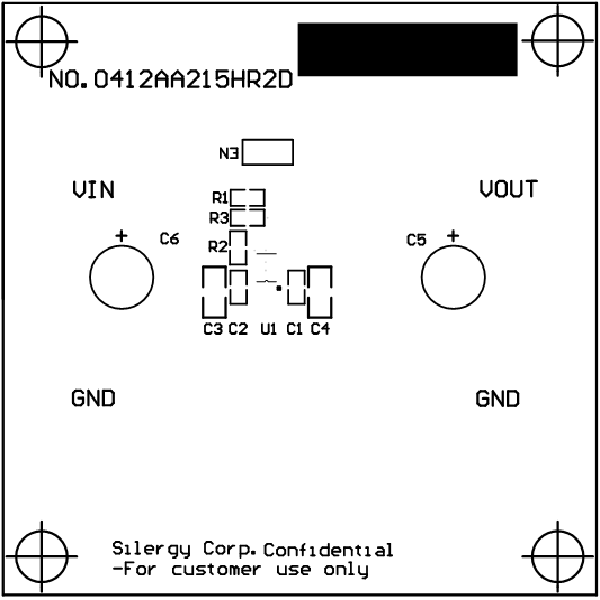

    • 20808F3-9

      Photo of evaluation board

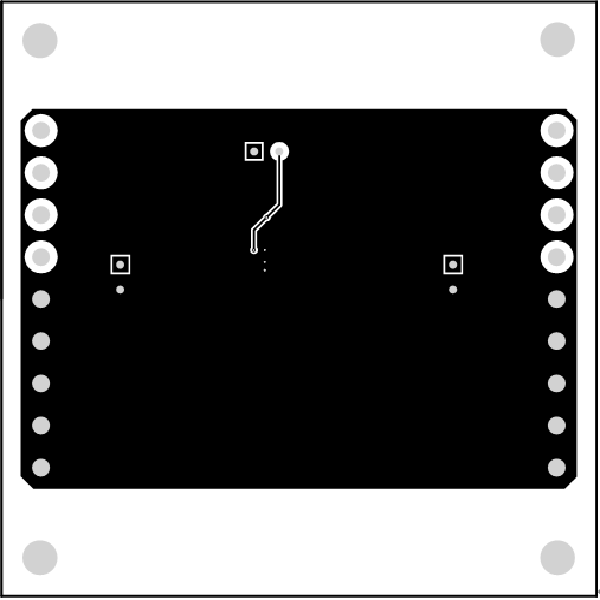

    • 20808F3-8

      Photo of evaluation board

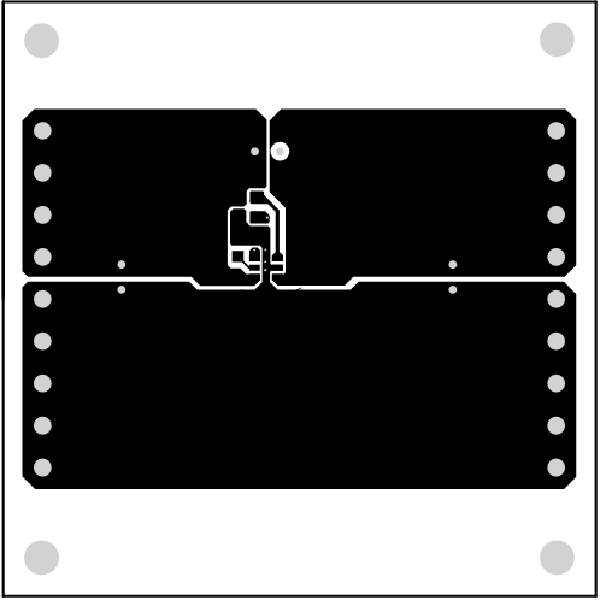

    • 20808F3-7

      Photo of evaluation board

    EVB_SY20808F3ABC

    The EVB_SY20808F3ABC is used to evaluate is an ultra-low RDS(ON), 3A Low Loss Power Distribution switch with current limit to protect the power source from over current and short circuit conditions.
