Low Loss Power Distribution Switch with Programmable Current limit
![]()
- Parameters
- Features
- Description
| Part number | SY20812CAAT |
|---|
| Channel(#) | 1 |
|---|
| Vin (min) (V) | 2.5 |
|---|
| Vin (max) (V) | 5.5 |
|---|
| Iout (max) (A) | 2.5 |
|---|
| Iq (typ) (uA) | 45 |
|---|
| Protection mode | Auto-recovery OCP,Auto-recovery OTP |
|---|
| Current limit (A) | Adjustable |
|---|
| Ron (typ) (mΩ) | 65 |
|---|
| Enable logic | High |
|---|
| Output discharge | YES |
|---|
| Certification recognition | |
|---|
| Features | Reverse blocking |
|---|
| Package | SOT23-5 |
|---|
| Operating temperature range(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- Input Voltage: 2.5V to 5.5V
- Extremely Low Power Path Resistance: 65mΩ (typ.)
- Adjustable Current Limit from 100mA to 2.5A
- Over Temperature Shutdown and Automatic Retry
- Reverse Blocking (No Body Diode)
- Output Capacitor Auto-discharge
- Built-in Soft-start
- RoHS Compliant and Halogen Free
- Compact Package Minimizes the Board Space: SOT23-5
The SY20812C, ultra-low RDS(ON) switch with a resistor programmable current limit operates over an input voltage range of 2.5V to 5.5V. The device can be used to protect a power source from overcurrent and short-circuit conditions. It incorporates overtemperature protection and reverse blocking functions.
Evaluation Board

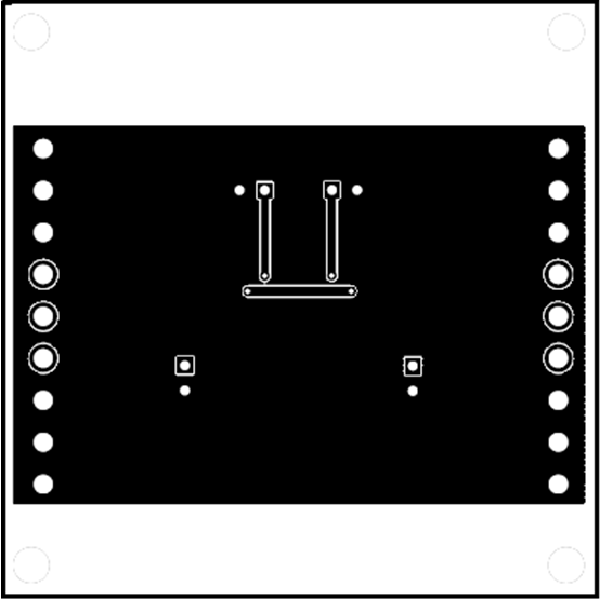

Photo of evaluation board

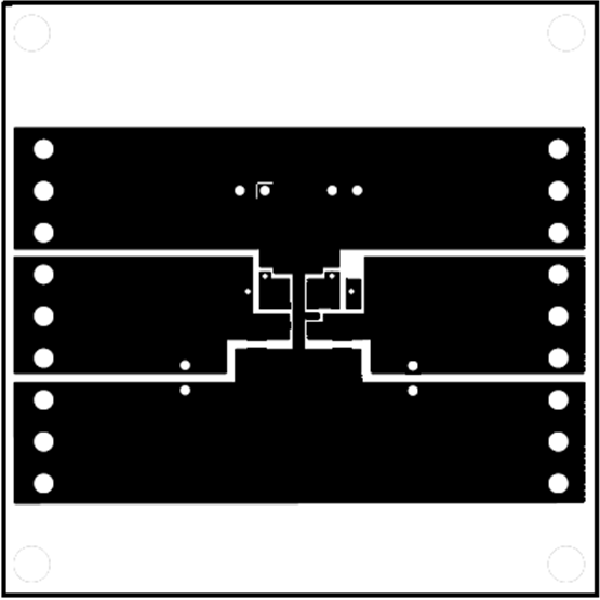

Photo of evaluation board

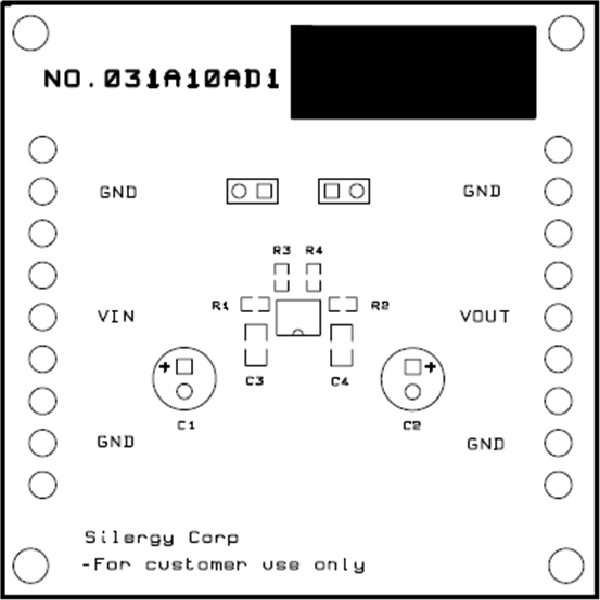

Photo of evaluation board
The EVB_SY20812CAAT is used for evaluating an ultra-low RDS(ON) Power Distribution switch with current limit to protect the power source from over current and short circuit conditions.
