SY20812DAAT

Production
Low Loss Power Distribution Switch with Programmable Current limit
Datasheet
SY20812DAAT Low Loss Power Distribution Switch with Programmable Current limit Datasheet
    Part NumberSY20812DAAT
    Vin_min (V)2.5
    Vin_max (V)5.5
    Io_max (A)2
    Rdson165
    Channels1
    EnableActive High
    Protection ModeOCP
    Features / Special FunctionProgrammable Current Limit,Reverse Blocking
    PackageSOT23-5
    • Input Voltage: 2.5V to 5.5V
    • Extremely Low Power Path Resistance: 65mΩ (typ.)
    • Adjustable Current Limit from 100mA to 2A
    • Over Temperature Shutdown and Automatic Retry
    • Reverse Blocking (No Body Diode)
    • Built-in Soft-start
    • RoHS Compliant and Halogen Free
    • Compact Package Minimizes the Board Space: SOT23-5



    The SY20812D is a current-limited P-channel MOSFET power switch designed for USB load-switching or hot plug applications. Its ultra-low RDS(ON) and current limit protect the power source from overcurrent and short-circuit conditions. It incorporates overtemperature protection and reverse blocking functions.

    An external resistor is used to configure the current limit threshold between 0.1A and 2A. An open-drain output can be used to detect fault events.

    The device incorporates overtemperature protection and reverse blocking functions.

    Evaluation Board

    • 6280D-1

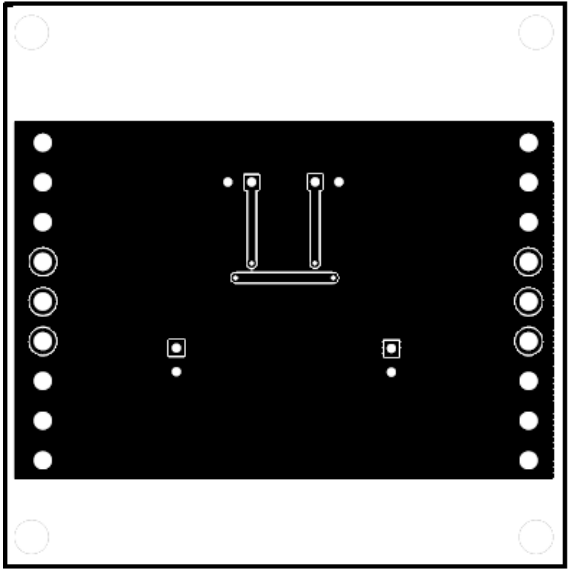

      Photo of evaluation board

    • 6280D-2

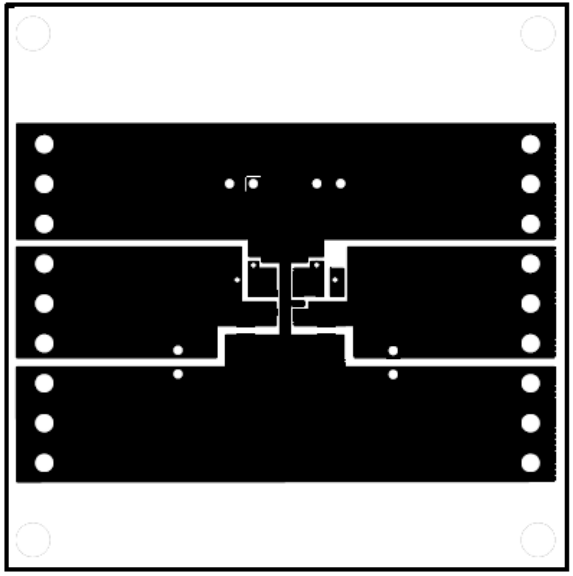

      Photo of evaluation board

    • 6280D-3

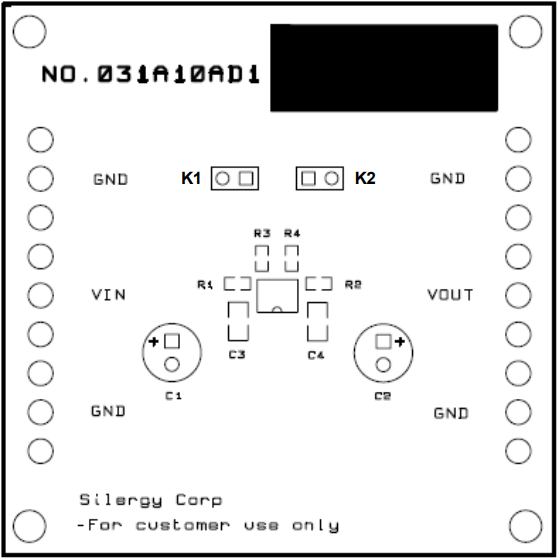

      Photo of evaluation board

    EVB_SY20812DAAT

    The EVB_SY20812DAAT is intended for evaluating Low Loss Power Distribution Switch with Programmable Current limit SY6280DAAT.

    Technical Documentation
