SY20828ABC (SY6883ABC)

Production
Over Voltage Protection Switch
Datasheet
SY20828ABC Over Voltage Protection Switch Datasheet
    Part numberSY20828ABC
    Channel(#)1
    Vin (min) (V)3
    Vin (max) (V)23
    Iout (max) (A)2
    Iq (typ) (uA)300
    Protection modeAuto-recovery OVP
    Ron (typ) (mΩ)100
    Soft startFixed
    Output dischargeYES
    Enable logicHigh
    Certification recognition
    Features
    PackageSOT23-6
    Operating temperature range(°C)-40 to 125
    Functional safety category
    • Low RDS(ON) for the N-channel MOSFET Switch: 100 mΩ typical
    • 2.0A Maximum Continuous Current
    • Over-Voltage Protection up to 25V
    • External Programmable Over-Voltage Protection Threshold
    • Thermal Shutdown Protection& Auto Recovery
    • OVP and OTP Fault Flag
    • 300µA Maximum Quiescent Current
    • 20µA Maximum in shutdown Current
    • RoHS Compliant and Halogen Free
    • Compact Package: SOT23-6

    Evaluation Board

    • 8663-8

      Photo of evaluation board

    • 8663-7

      Photo of evaluation board

    • 8663-9

      Photo of evaluation board

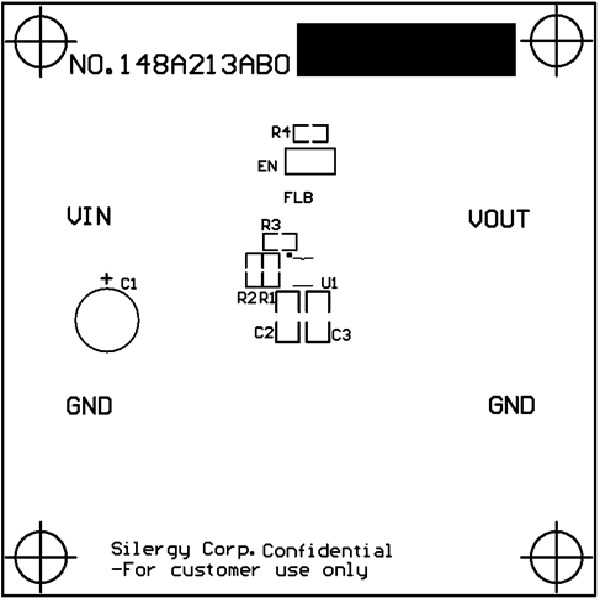

    EVB_SY20828ABC

    The EVB_SY20828ABC is used to evaluate  an over-voltage protection switch with programmable over-voltage threshold by two external resistors.
