SY21114ADC - High Efficiency, 3.0A, 18V Input Synchronous Step Down Regulator

Features


  • Low RDS(ON) for Internal Switches (Top/Bottom): 80mΩ/40mΩ
  • 4.2-18V Input Voltage Range
  • 3A Output Current Capability
  • 500kHz Switching Frequency Minimize the External Components
  • Stable with 10μF COUT and 2.2μH Inductor
  • Instant PWM Architecture to Achieve Fast Transient Responses
  • Internal Soft-start Limits the Inrush Current
  • Startup from Pre-biased Output
  • Cycle-by-cycle Peak/Valley Current Limitation
  • Hic-cup Mode Output Short Circuit Protection
  • Over Temperature Protection with Auto Recovery
  • Output Auto Discharge Function
  • ±1.0% Internal Reference Voltage
  • RoHS Compliant and Halogen Free
  • Compact Package: TSOT23-6

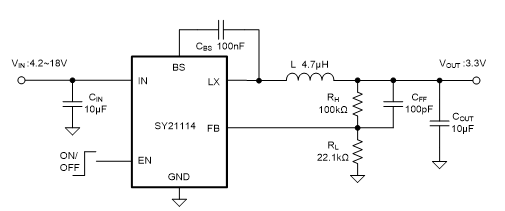

Typical Application

Description

The SY21114 develops high efficiency 500kHz synchronous step-down DC/DC converter capable of delivering 3A current. The device operates over a wide input voltage range from 4.2V to 18V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.


The SY21114 adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 500kHz to minimize the size of the inductor and the capacitor.

Applications



  • Set Top Box
  • Portable TV
  • DSL Modem
  • LCD TV
  • IP CAM
  • Networking
