SY21236RAC (SY8286RAC)

Not recommended for new designs
High Efficiency Fast Response, 6A, 23V Input Synchronous Step Down Regulator
Datasheet
SY21236RAC High Efficiency Fast Response, 6A, 23V Input Synchronous Step Down Regulator Datasheet
    • Low RDS(ON) for Internal Switches (Top/Bottom): 38/19 mΩ
    • Wide Input Voltage Range: 4-23V
    • Output Voltage Range: 0.6~2.5V
    • External  Bypass Input
    • Instant PWM Architecture to Achieve Fast Transient Responses
    • Internal 400μs Soft-start Limits the Inrush Current
    • Pseudo-constant Frequency: 500kHz
    • 6A Continuous/12A Peak Output Current Capability
    • ±1.0% 0.6V Reference
    • Programmable Valley Current Limit
    • Power Good Indicator
    • Output Discharge Function
    • Short Circuit Latch Off Protection
    • Over Voltage Latch Off  Protection
    • Thermal Shutdown
    • Input UVLO
    • RoHS Compliant and Halogen Free
    • Compact package: QFN3×3-20



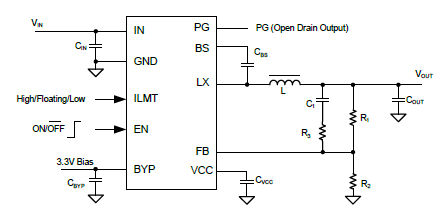

    The SY21236 develops a high efficiency synchronous step-down DC/DC regulator capable of delivering 6A continuous, 12A peak current. The device integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. SY21236 also integrates a bypass switch which allows the IC to be powered by external DC source.



    The SY21236 operates over a wide input voltage range from 4V to 23V. The DC-DC regulator adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 500kHz under heavy load conditions to minimize the size of inductor and capacitor. SY21236 is optimized for lower than 2.5VOUT application
