SY21243ARHC - High Efficiency Fast Response, 8A, 24V Input Synchronous Step Down Regulator

Features


  • Low RDS(ON) for Internal Switches (Top/Bottom): 20/10 mΩ
  • Wide Input Voltage Range: 4~24V
  • Integrated Bypass Switch: 1.5Ω
  • Instant PWM Architecture to Achieve Fast Transient Responses
  • Internal Soft-Start Limits the Inrush Current
  • Pseudo-Constant Frequency: 600kHz
  • Adjustable Output Voltage Application
  • 8A Output Current Capability
  • ±1% Internal Reference Voltage
  • PFM/FCCM Selectable Light Load Operation Mode
  • Power Good Indicator
  • Output Discharge Function
  • Cycle-by-cycle Valley and Peak Current Limit Protection
  • Programmable Valley Current Limit Threshold by ILMT Pin
  • Hic-cup Mode Output Under Voltage Protection
  • Auto-recovery Mode Output Over Voltage Protection
  • Auto-recovery Mode Over Temperature Protection
  • Input UVLO
  • RoHS Compliant and Halogen Free
  • Compact Package: QFN2.5×2.5-16

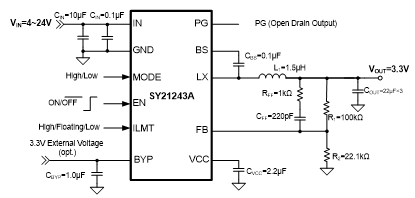

Typical Application

Description

SY21243A develops a high efficiency synchronous step-down DC/DC regulator capable of delivering 8A current over a wide input voltage range of 4V to 24V.


Silergy’s proprietary Instant-PWM™ fast-response, constant-on-time (COT) PWM control method supports high input/output voltage ratios (low duty cycles), and fast transient response while maintaining a near constant operating frequency over line, load and output voltage ranges. This control method provides stable operation without complex compensation and even with low ESR ceramic capacitors.


Internal 20mΩ power and 10mΩ synchronous rectifier switches provide excellent efficiency over a range of applications, especially for low output voltages and low duty cycles. SY21243A also integrates a bypass switch which allows the IC to be powered by external DC source. Cycle-by-cycle current limit, input under voltage lock-out, internal soft-start, output under voltage protection and over voltage protection and thermal shutdown provide safe operation in all operating conditions. The SY21243A is available in a compact QFN2.5×2.5-16 package.

Applications


  • LCD-TV/Net-TV/3DTV
  • Set Top Box
  • Notebook
  • High Power AP
