High Efficiency, 100V Input, 2A. Asynchronous Step Down Regulator
![]()
- Parameters
- Features
- Description
| Part number | SY21252FCC |
|---|
| Channel!(#) | 1 |
|---|
| Vin (min) !(V) | 4.5 |
|---|
| Vin (max) !(V) | 100 |
|---|
| Switching frequency (min)!(kHz) | 100 |
|---|
| Switching frequency (max)!(kHz) | 1000 |
|---|
| Vout (min) !(V) | 0.8 |
|---|
| Vout (max) !(V) | 36 |
|---|
| Iout (max) !(A) | 2 |
|---|
| Vout2 (min)!(V) | |
|---|
| Vout2 (max )!(V) | |
|---|
| Iout2 (max)!(A) | |
|---|
| Vref accuracy! (±%) | 1 |
|---|
| Vout accuracy!(±%) | |
|---|
| Control mode | COT OFF+Ipeak |
|---|
| Duty cycle (max)!(%) | 80 |
|---|
| Operation mode | Auto PFM |
|---|
| Iq (typ) !(uA) | 100 |
|---|
| Features | Power good,Asynchronous |
|---|
| Package | SO8E |
|---|
| Operating temperature range!(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- Low R DS(ON) for Internal N-channel Power FET(TOP):175mΩ
- 4.5-100V Input Voltage Range
- 2A Output Current Capability
- Adjustable Switching Frequency Range: 100kHz to1MHz
- Internal Soft-start Limits the Inrush Current
- Hic-cup Mode Output Short Circuit Protection
- EN ON/OFF Control with Accurate Threshold
- Cycle-by-cycle Peak Current Limit
- 0.8V± 1% Reference Voltage Accuracy
- Compact Package: SO8E
The SY21252 develops a high efficiency, current mode adaptive constant off time controlled, asynchronous step-down DC/DC converter capable of delivering 2A output current. The SY21252 operates over a wide input voltage range from 4.5V to 100V and integrates main switch with very low RDS(ON) to minimize the conduction loss. The switching frequency is adjustable from 100kHz to 1MHz using an external resistor. And the device features cycle-by-cycle peak current limitation.
Evaluation Board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board

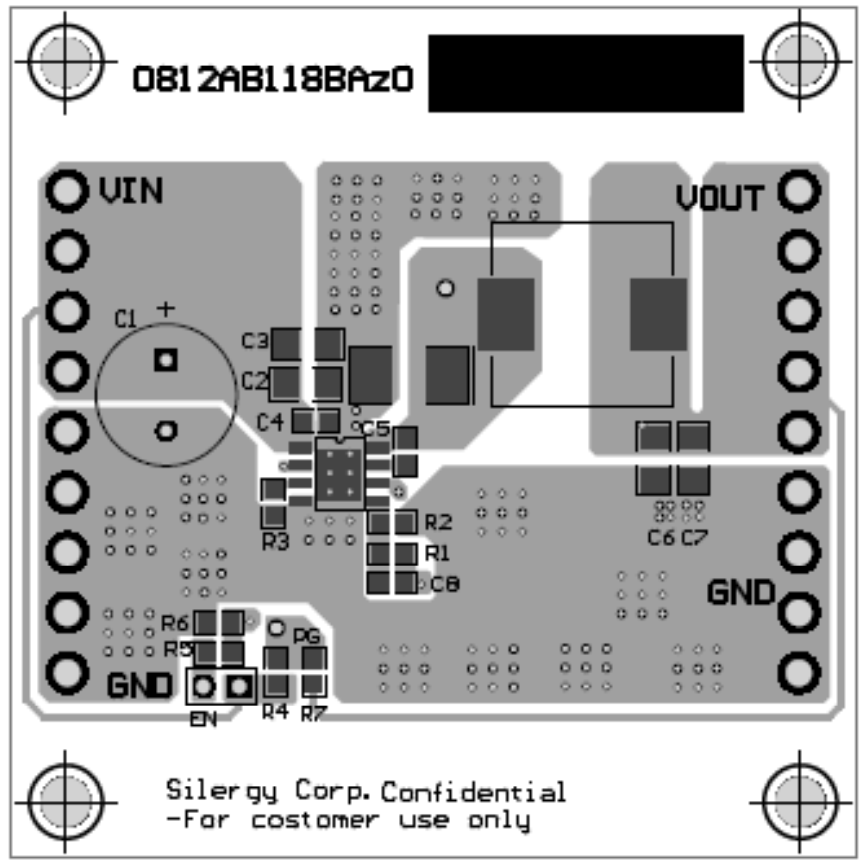

The EVB_SY21252FCC is intended for evaluating 2A current and 100V maximum input voltage asynchronous step down regulator.
