SY21603QIC (SY6703QIC)

Production
High Efficiency H-Bridge Motor Driver IC
Datasheet
SY21603QIC High Efficiency H-Bridge Motor Driver IC Datasheet
    Part numberSY21603QIC
    Vin (max) !(V)12
    Vin (min) !(V)2.5
    Number of half bridges2
    RDS(on) (HS + LS) !(mΩ)480
    Peak output current !(A)1.8
    Sleep current !(µA)2.5
    Integrated FETs(Yes/No)Yes
    Control interfaceHW
    FeaturesCurrent regulation, Integrated current sensing, Mixed decay
    Operating temperature range!(°C)-40 to 85
    PackageQFN4×4-16
    Functional safety category
    • Dual H-bridge Motor Driver
    • Maximum Drive Current of 1.5A RMS Current for Each H-bridge
    • Power Supply Voltage Range from 2.5V to 16V
    • PWM (IN/IN) Interface
    • PWM Winding Current Regulation/Limit
    • Internal OCP/SCP/UVL and thermal shutdown
    • Multiple Packages Choice: QFN4×4-16

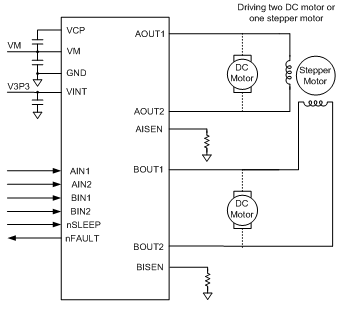

    The SY21603 is a dual H-bridge motor driver solution for toys, printers, and other mechatronic applications. The SY21603 operates with a power-supply voltage range from 2.5V to 16V, and 1.5A RMS maximum output current.

    The device can drive two DC brush motors, a bipolar stepper motor, solenoids, or other inductive loads. The highly integrated H-bridge driver block consists of two H-bridges with internal logic control, gate drive, over current protection and charge pump circuit. Each H-bridge includes circuitry to regulate or limit the winding current.

    The SY21603 provides internal shutdown functions with a fault output pin are provided for over current protection, short circuit protection, under voltage lockout and thermal shutdown. A low-power sleep mode is also provided.
